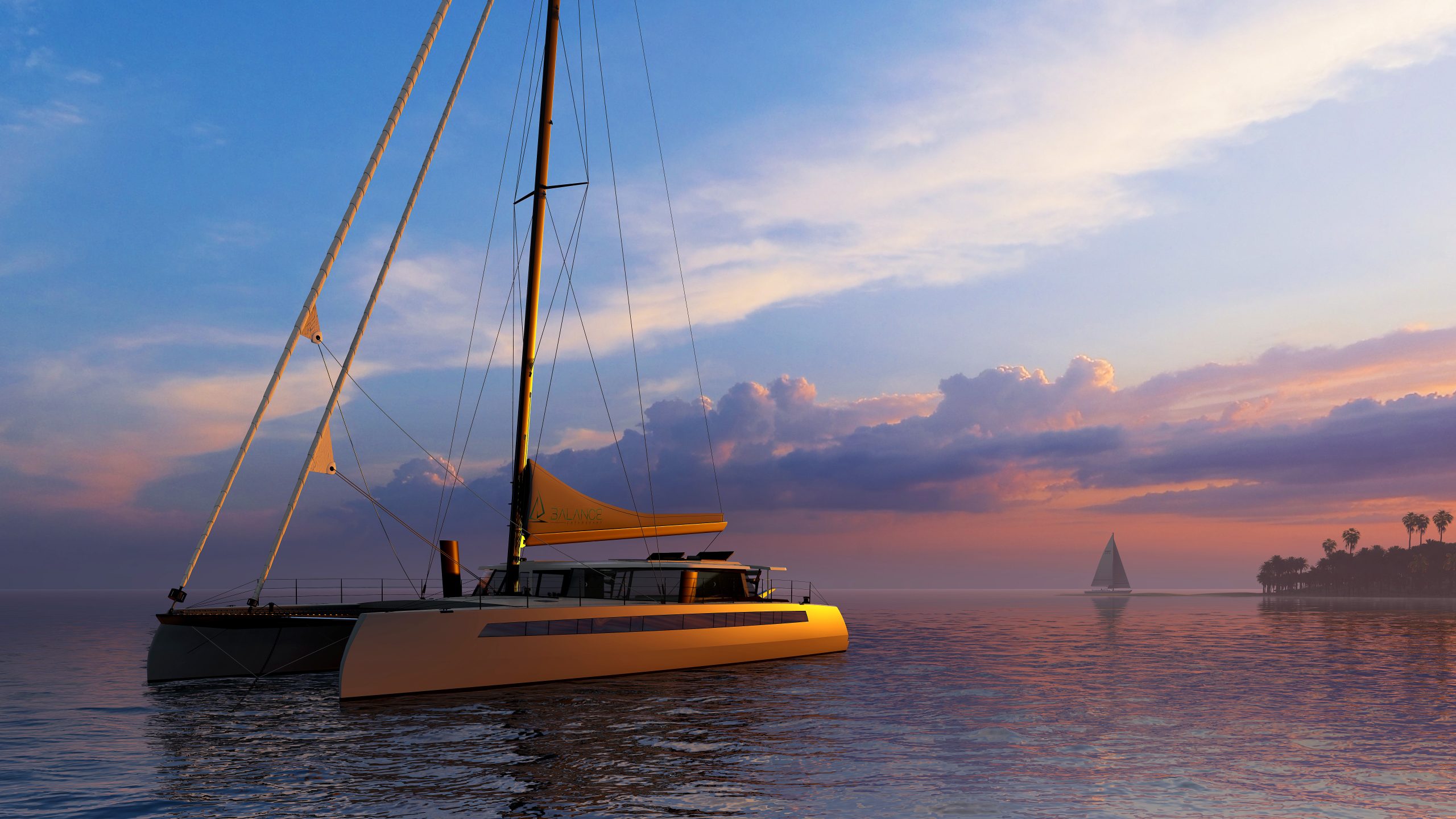

Our stunning new flagship is a ground-breaking high-performance luxury adventurer that sports both a forward cockpit and dual bulkhead helms.
Overview
Overall Length
23.19m
76.10ft
Beam Overall
11.34m
37.19ft
Sail Area
341.6m2
3,677ft2
Designers
Philip Berman
Draft (Boards Up)
2.17m
7.12ft
Base Boat Displacement
31,901kgs
70,342lbs
Anton du Toit

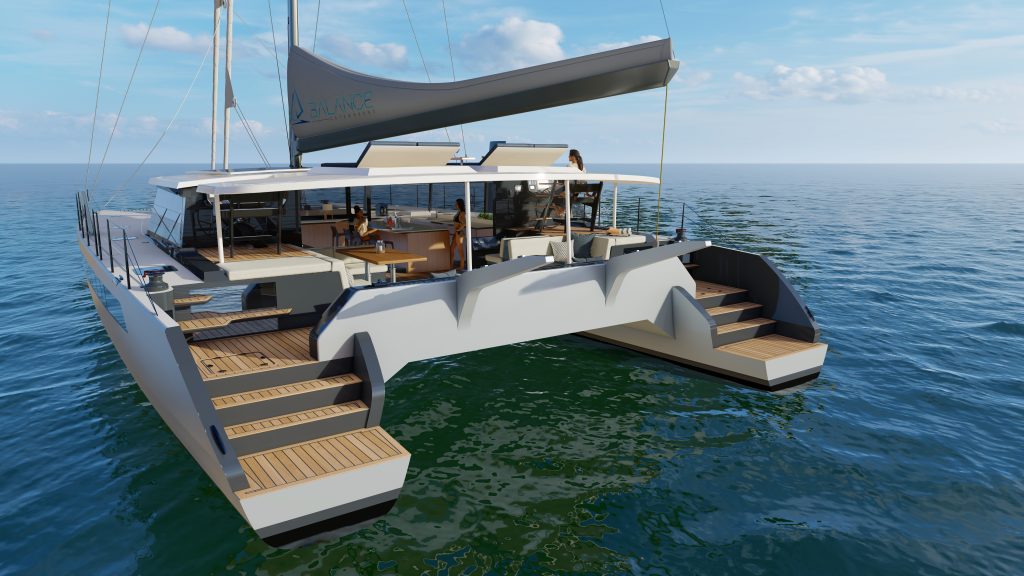

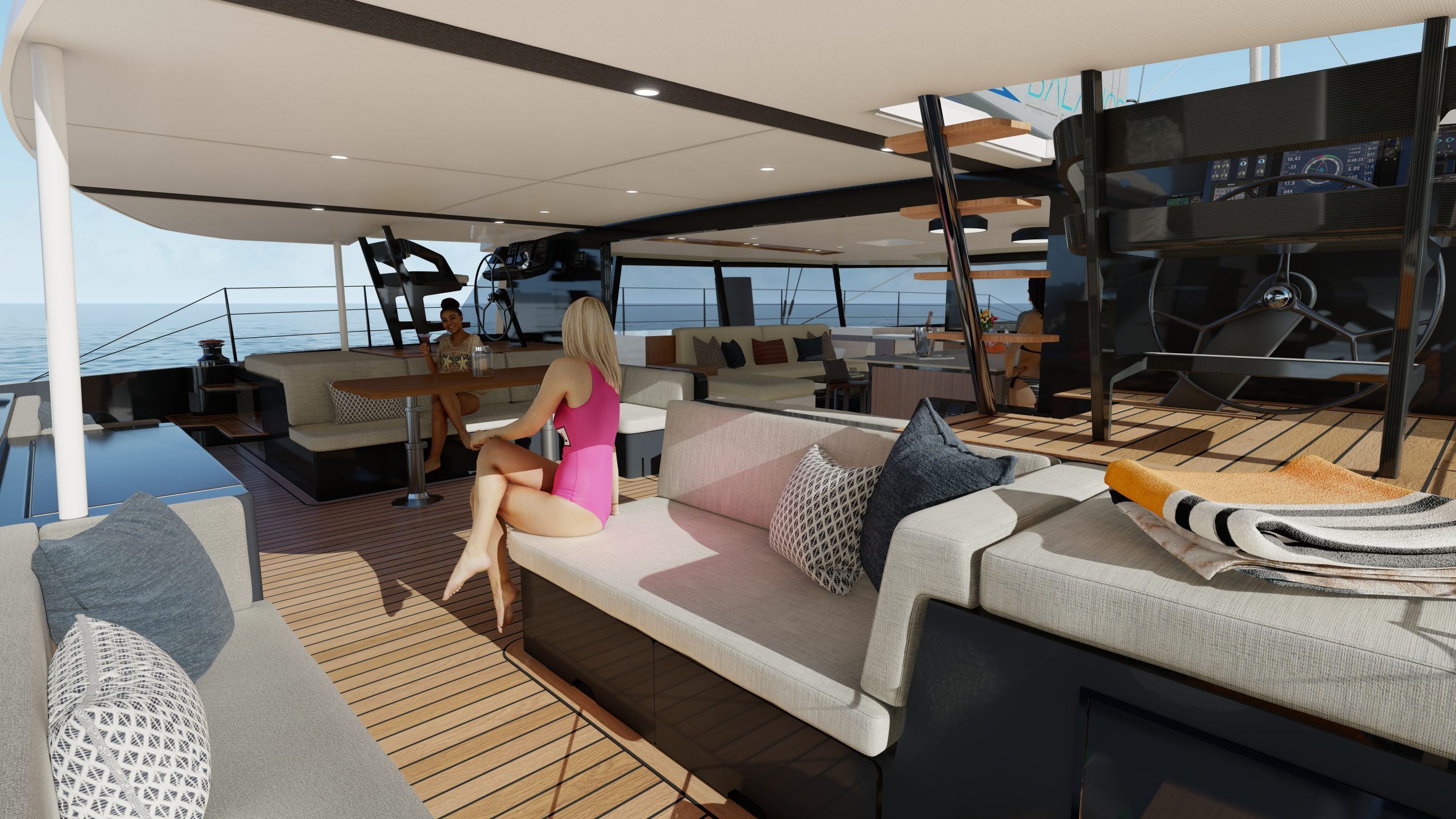

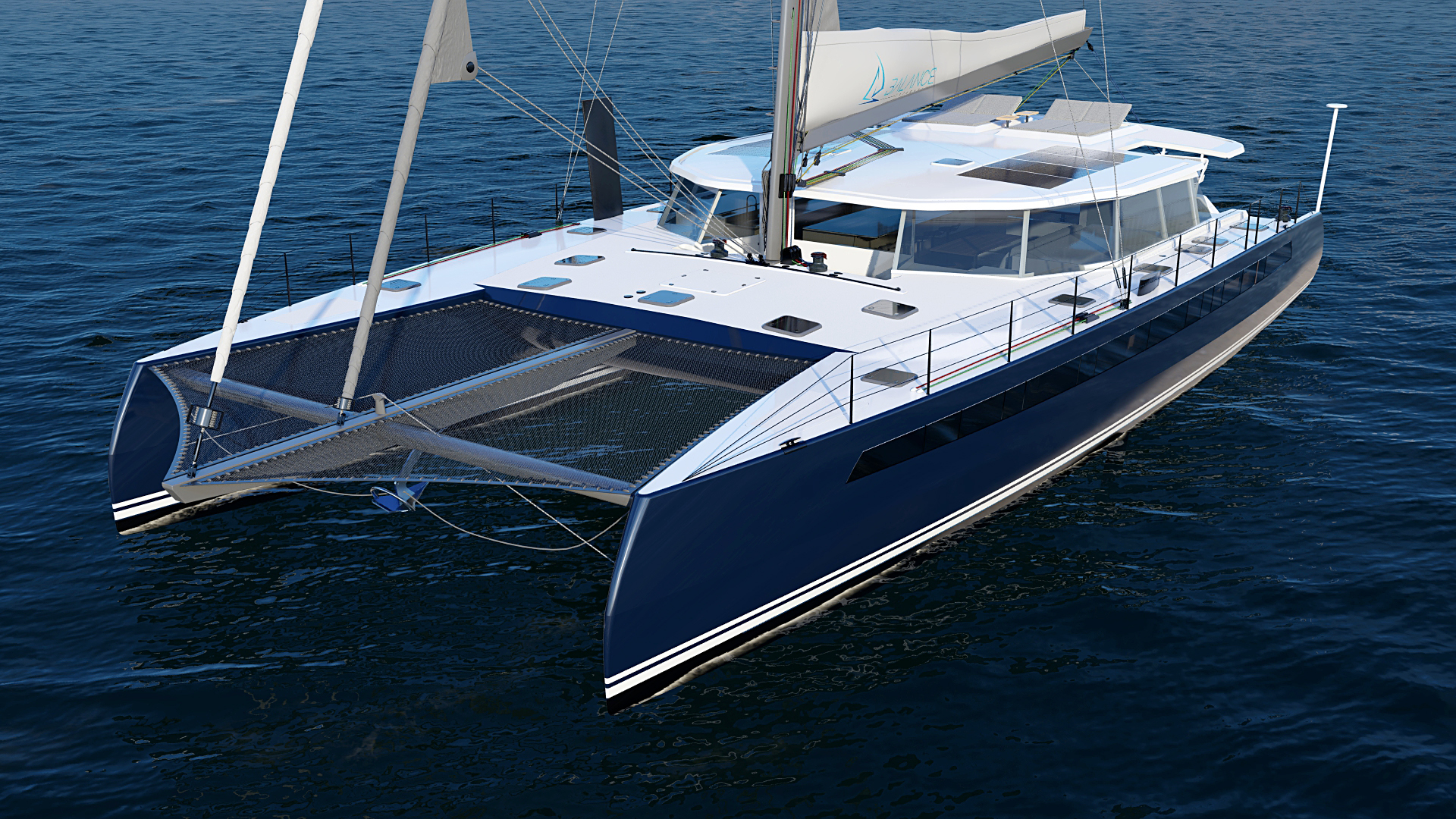

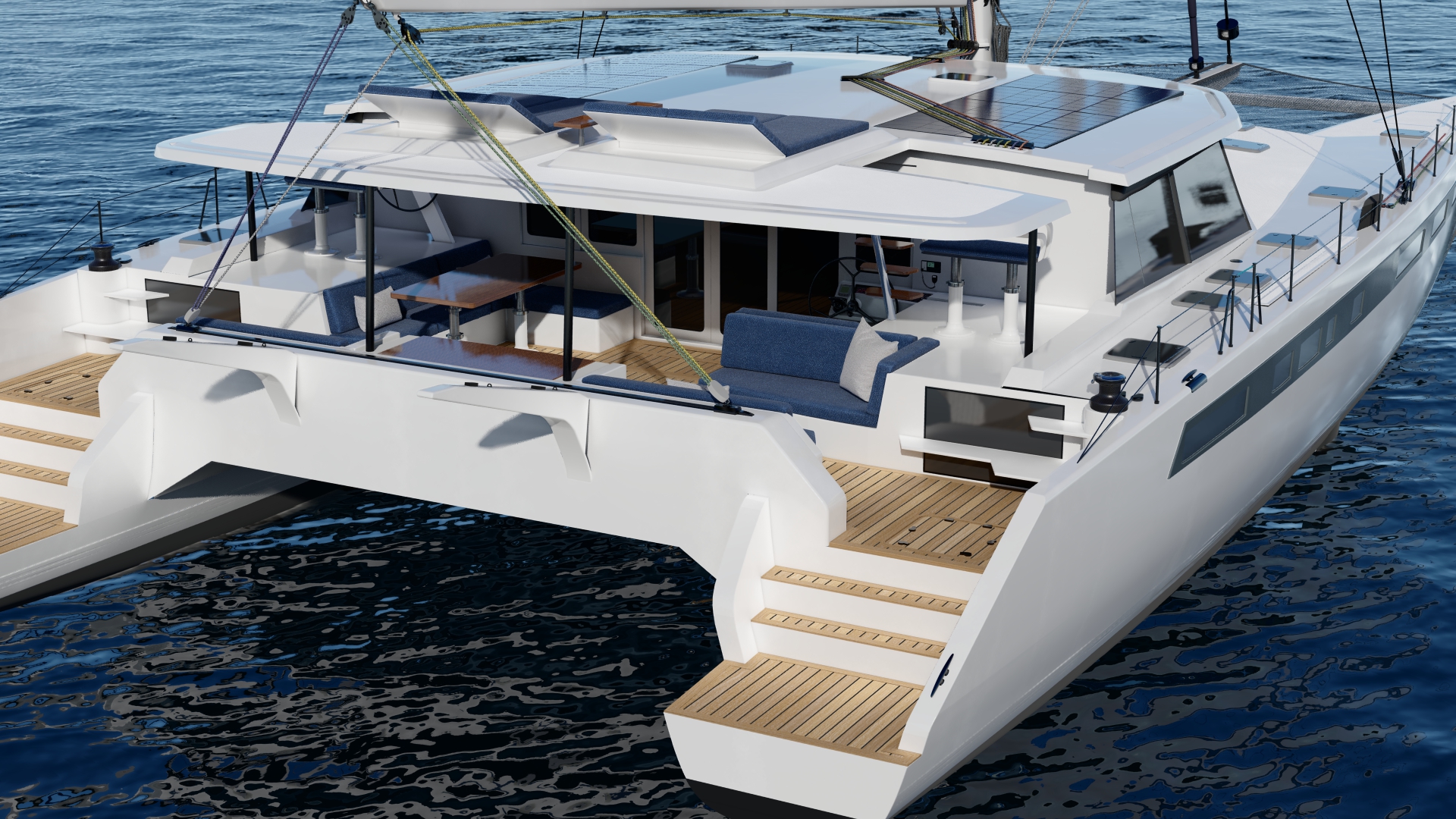

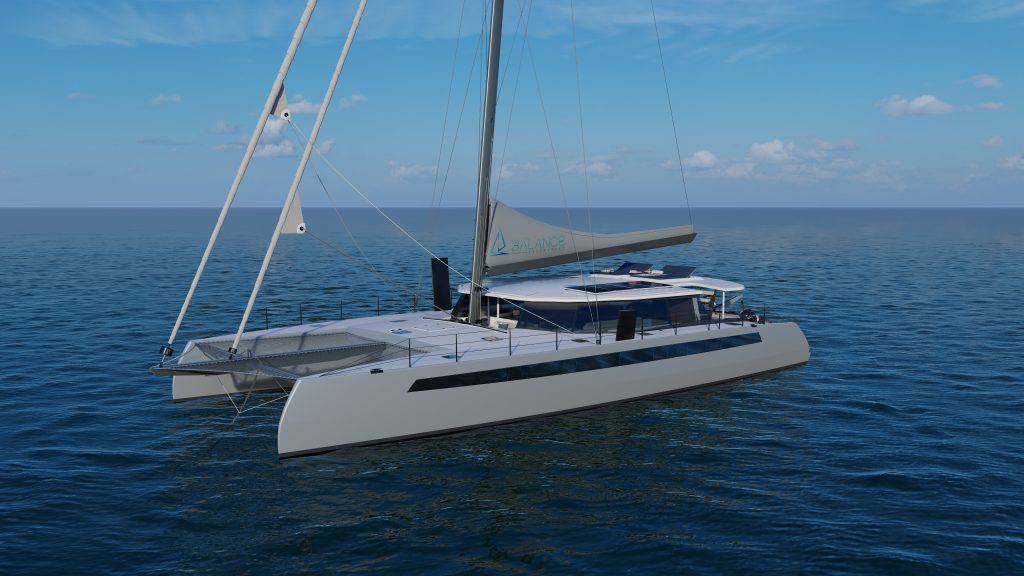

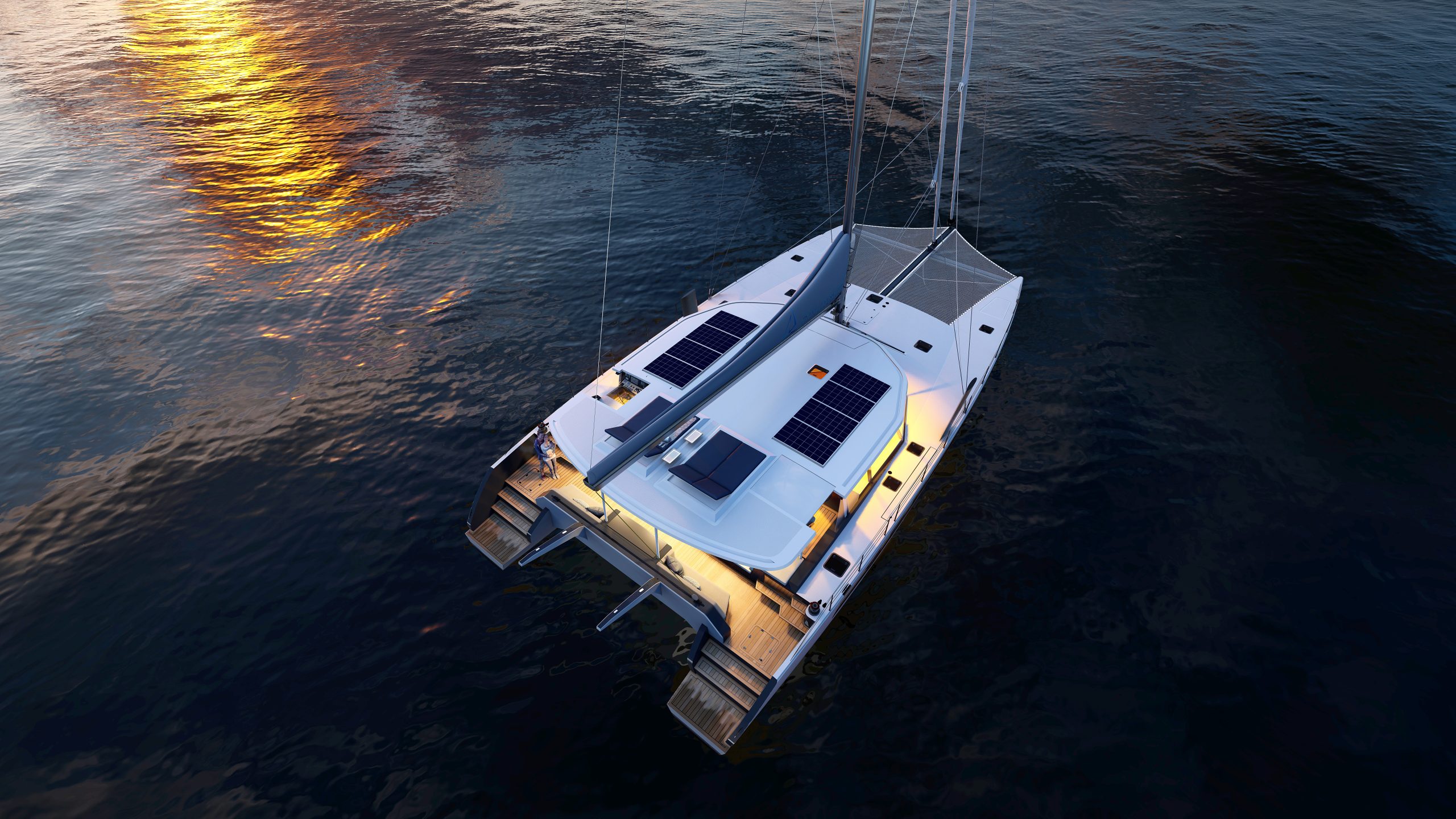

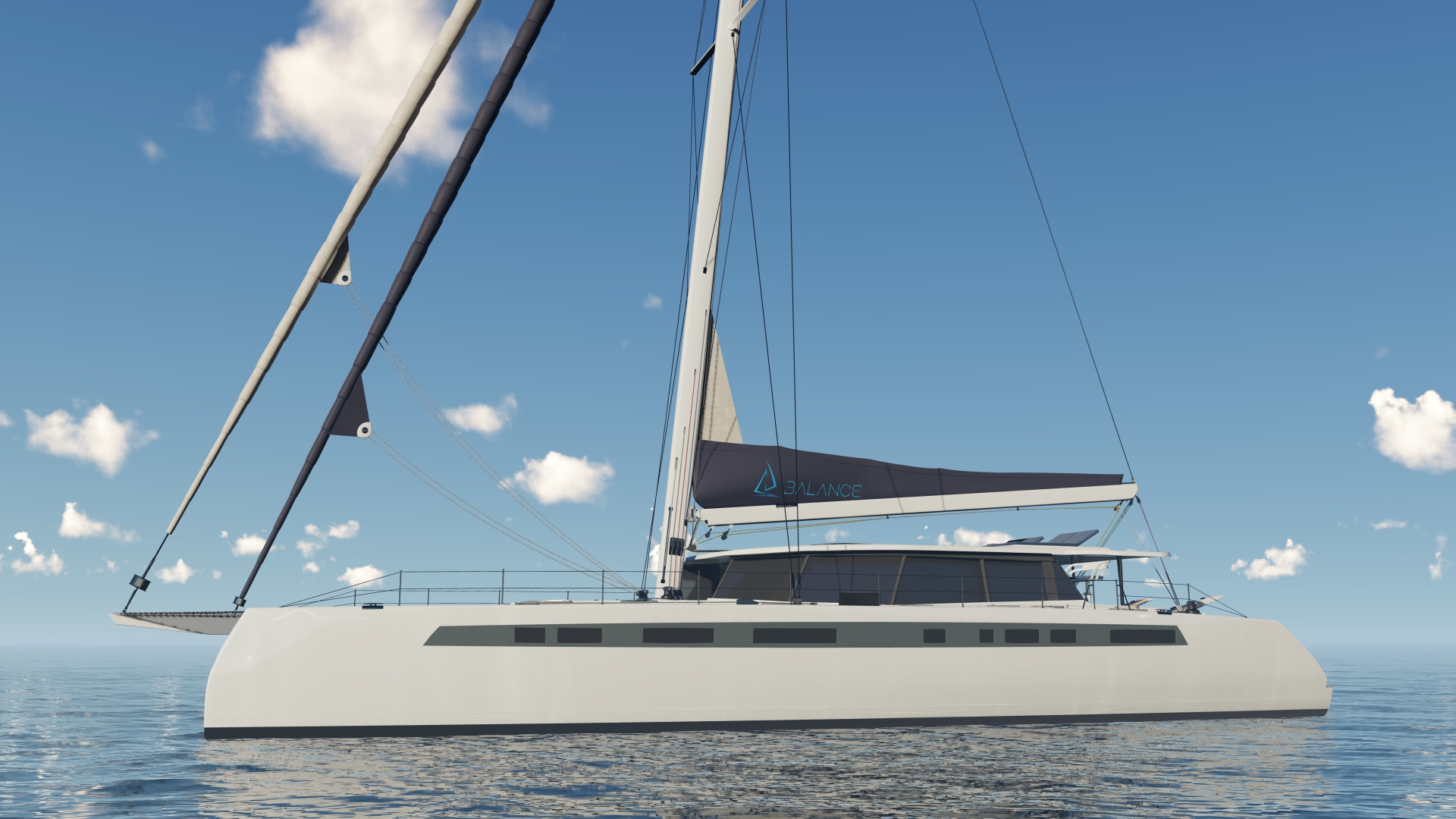

Exterior

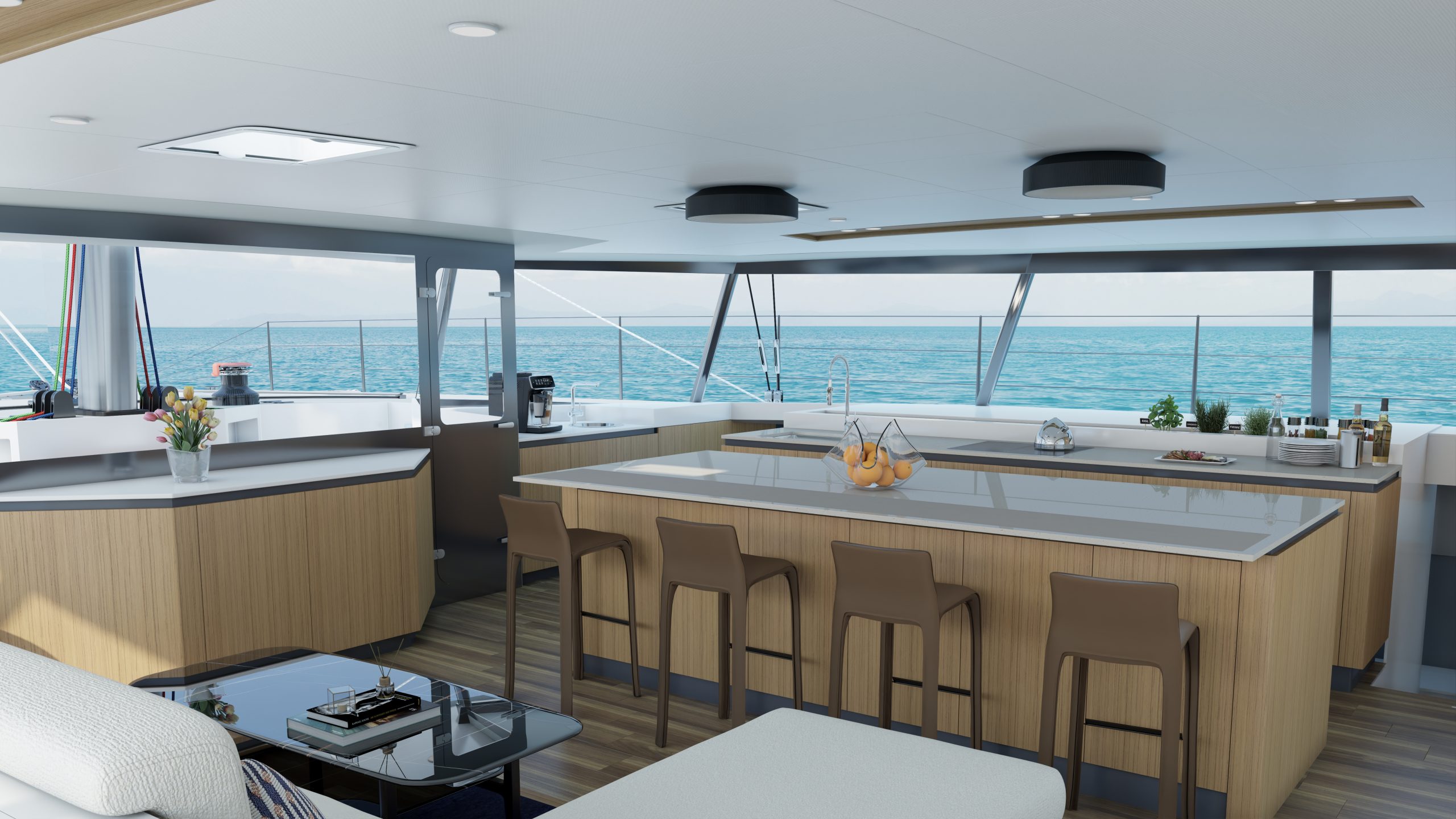

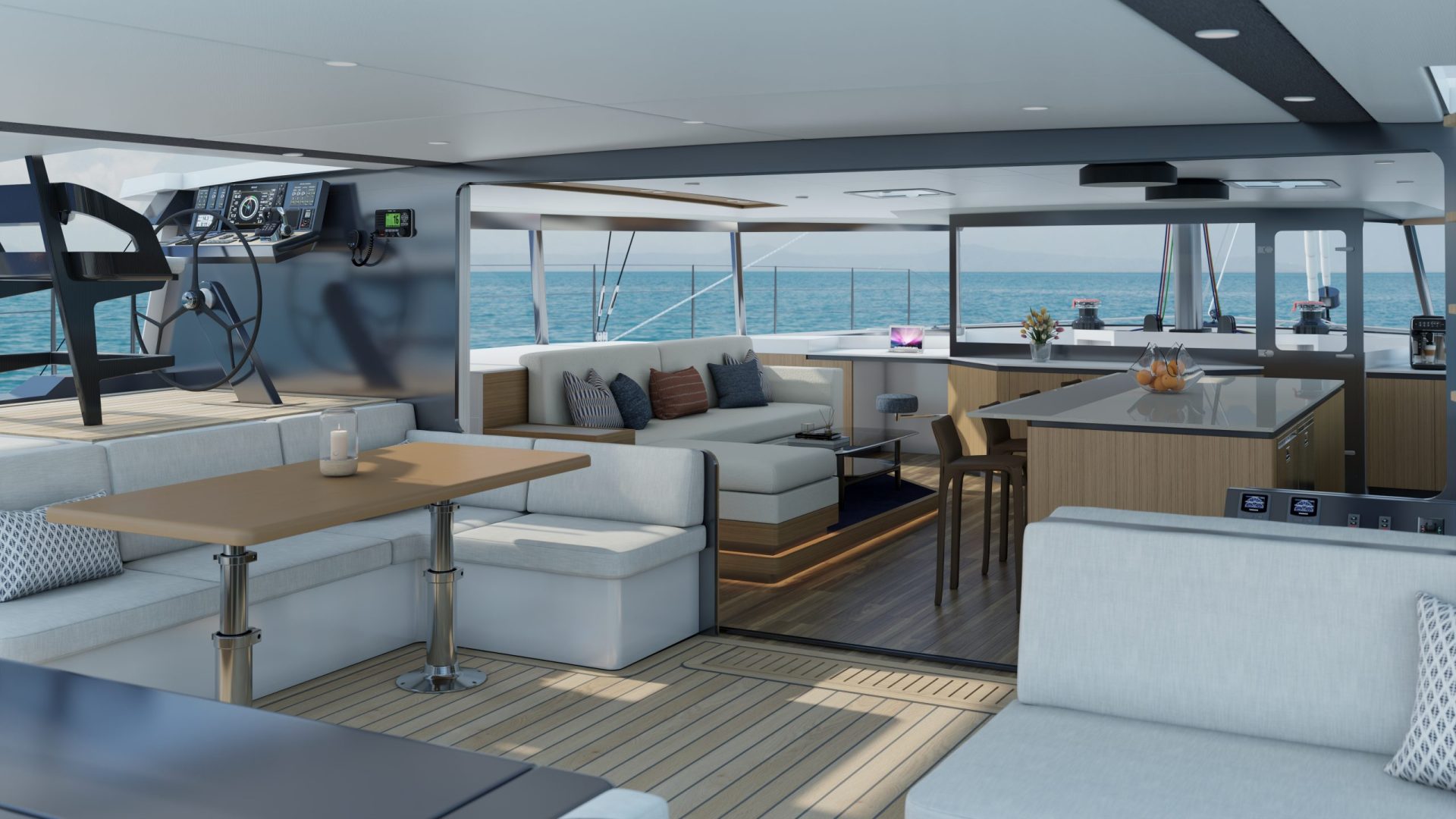

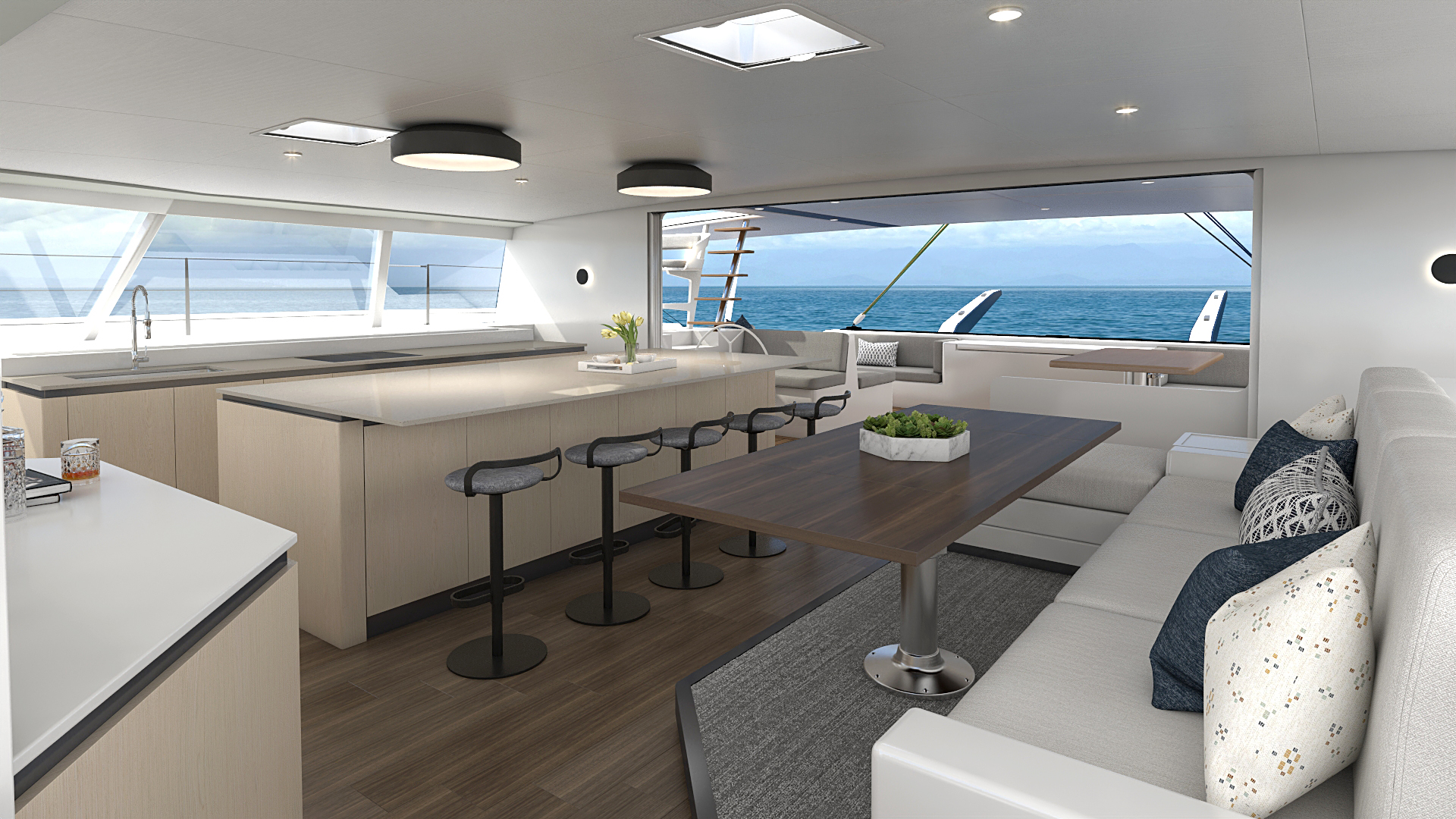

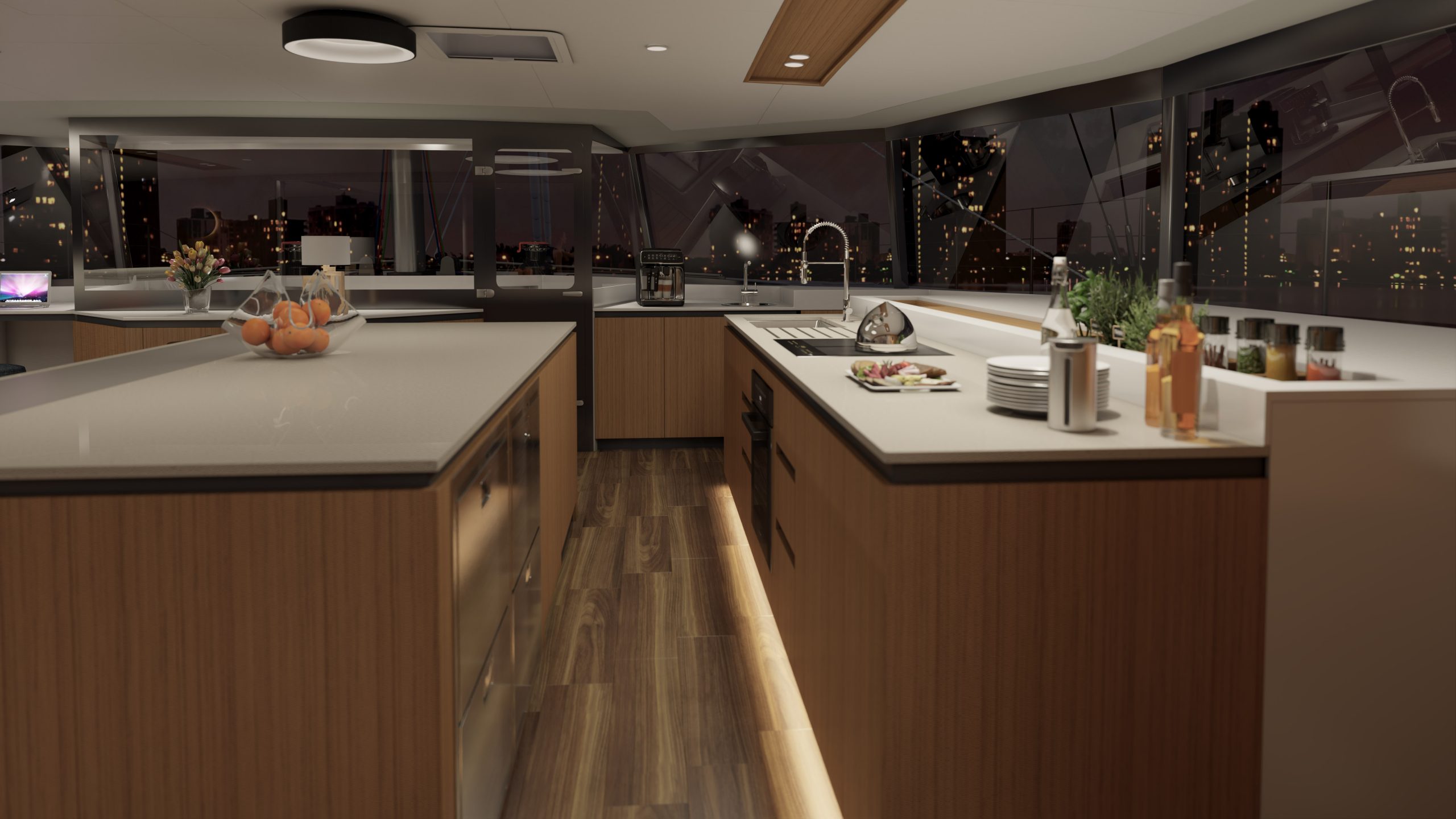

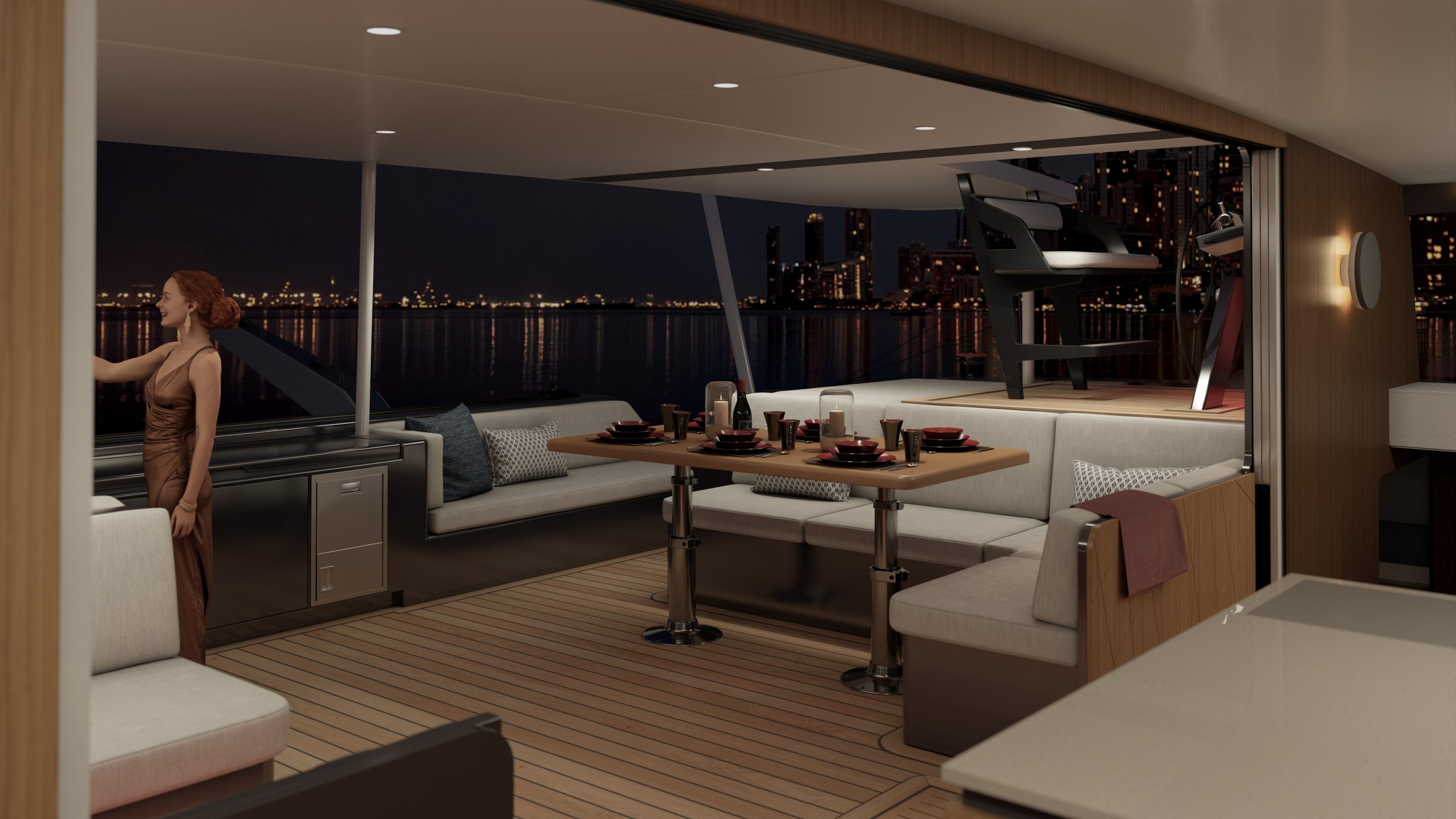

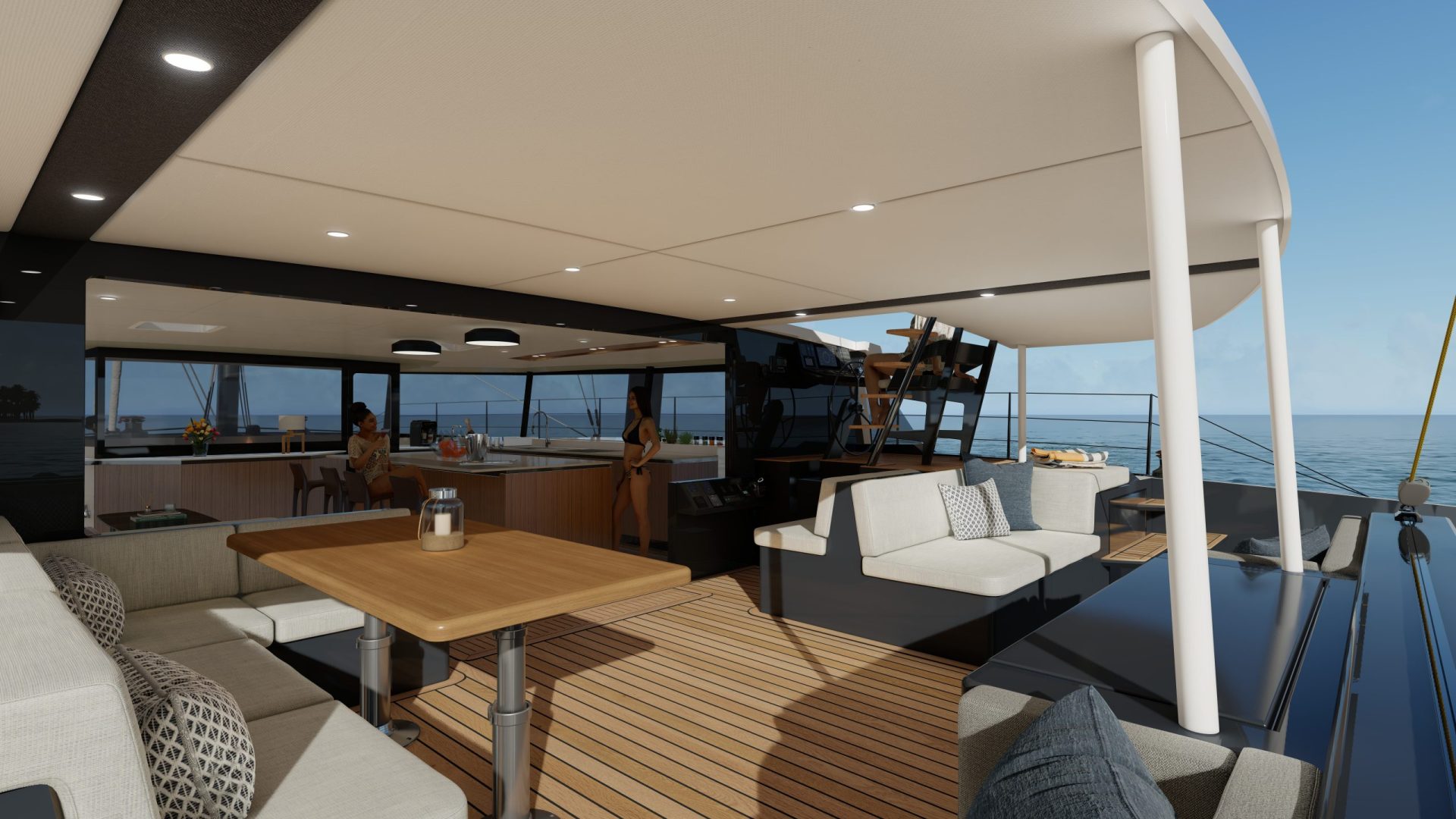

Cockpit / Salon

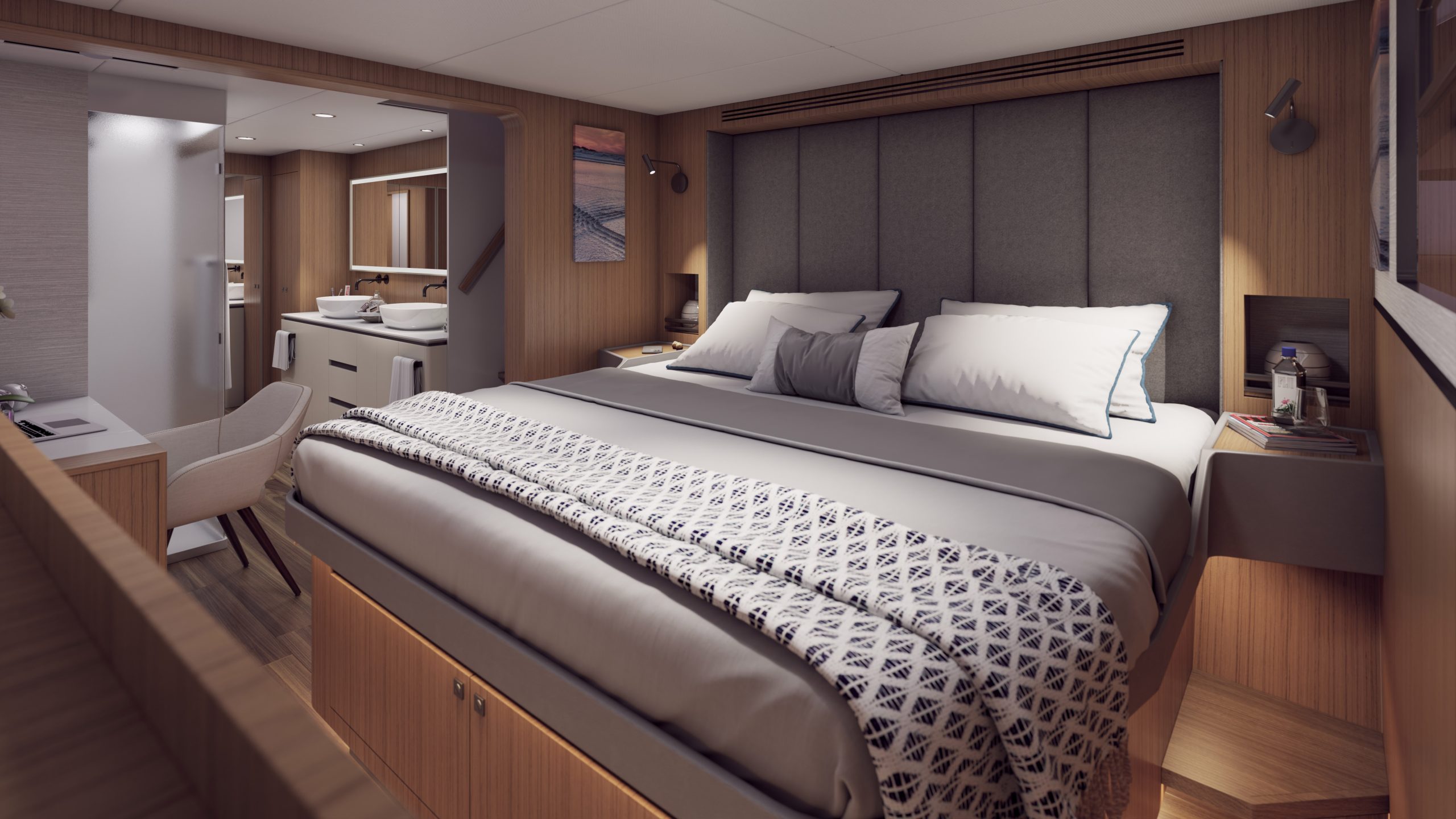

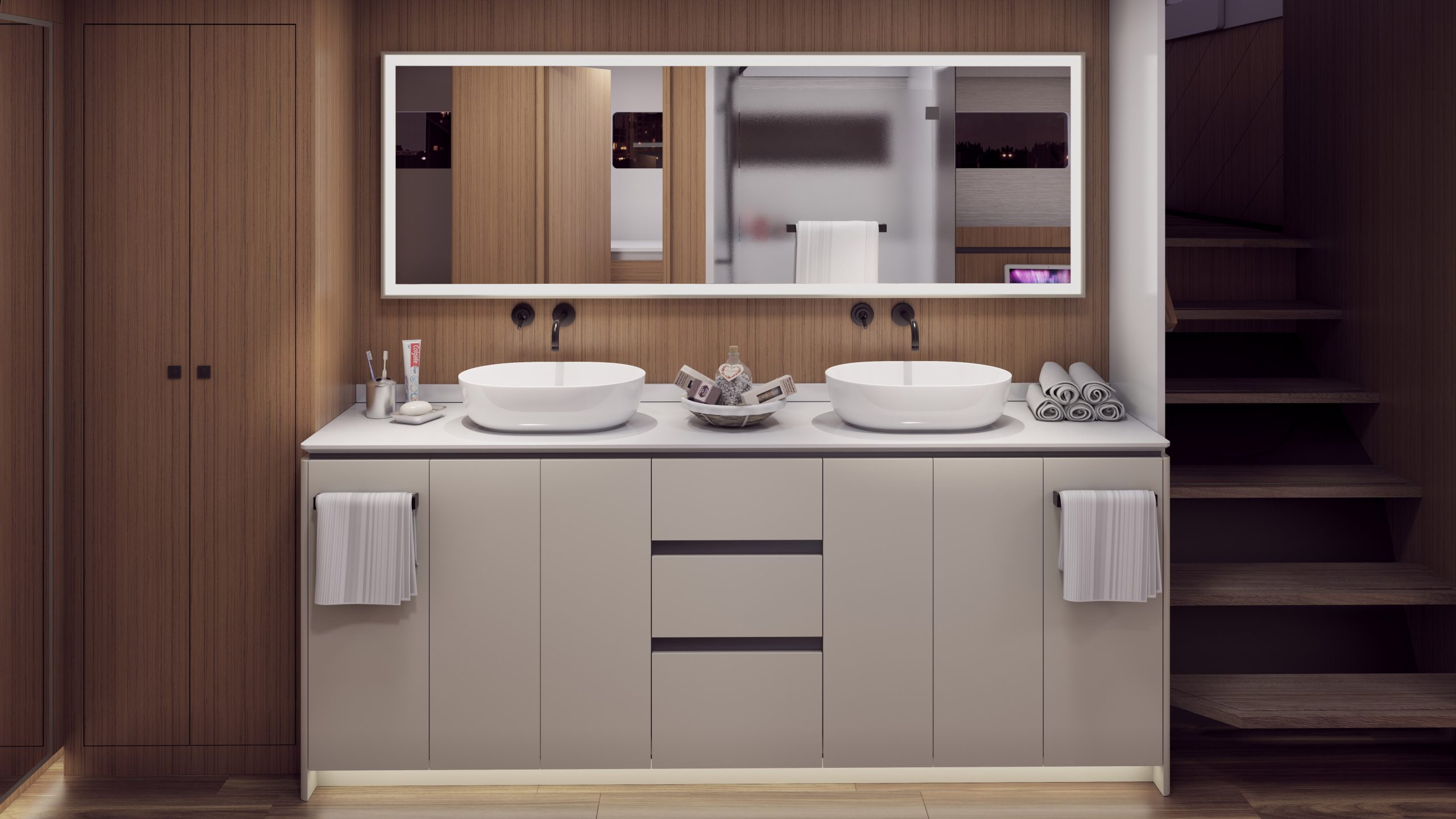

Cabins / Heads
Performance
Our stunning new flagship is a super-high-performance luxury adventurer that sports a forward cockpit and dual bulkhead helms. Charter sailors will envy her speed and beauty, racing sailors will crave her quality and comfort. Her owners will simply applaud her balance.

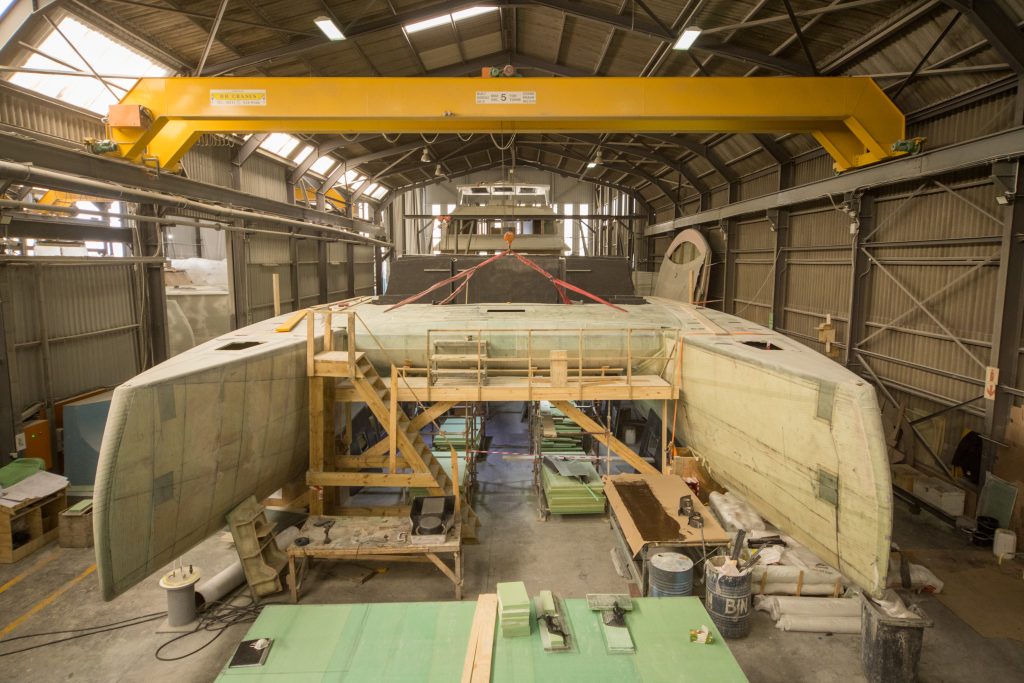

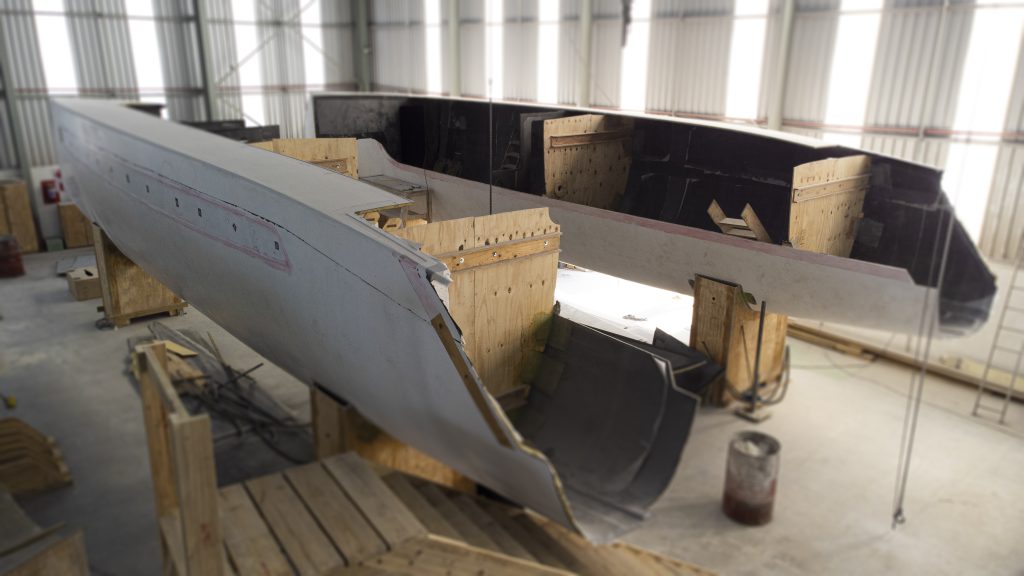

The Hull

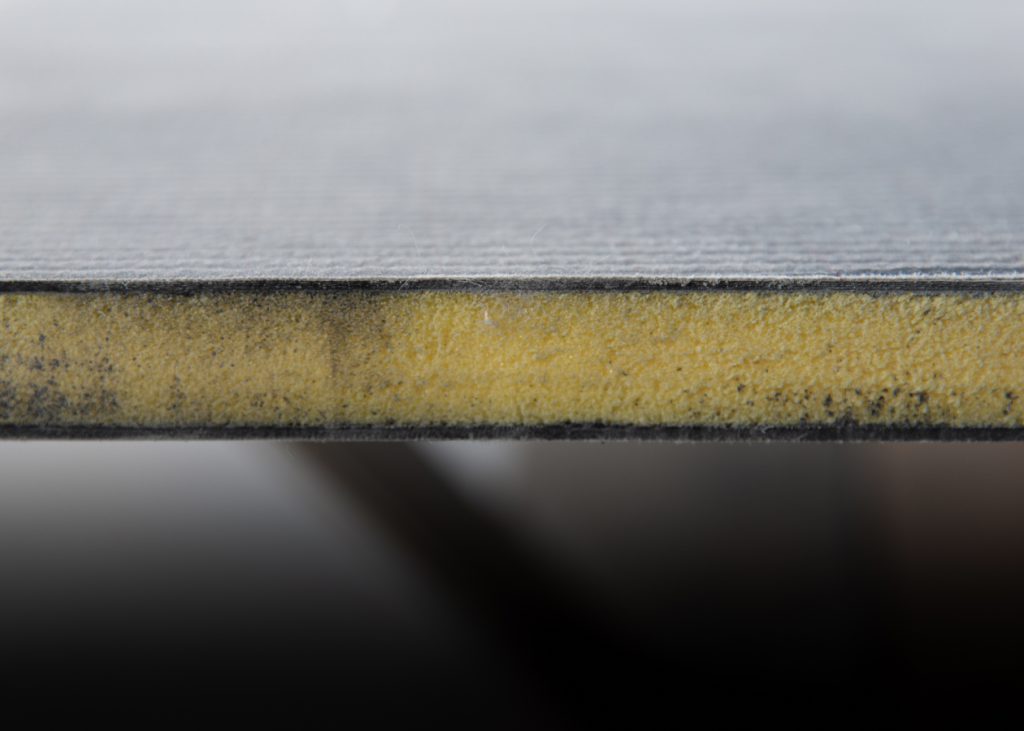

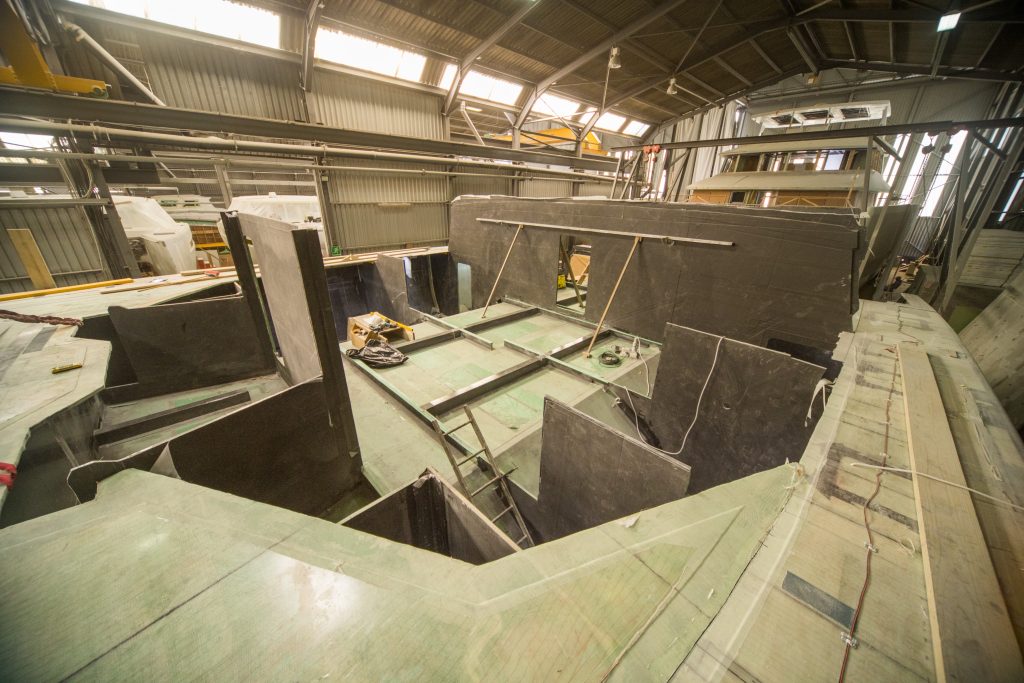

We use E-glass (a Silica -based fiber) with significant carbon-fiber reinforcement in the high-load areas of our hulls and decks. Every Balance 750 is hand-laminated and vacuum-bagged with closed cell foam cores in full epoxy construction.
The 750 XP is crafted with 100% epoxy resin and full carbon construction.
Full Specs
Overall Length
23.19 m / 76.10 ft
Waterline Length
23.18 m / 76.04 ft
Beam Overall
11.34 m / 37.19 ft
Main Sail
223.5 m2 / 2,405 ft2
Working Self-Tacking Jib
100.5 m2 / 1,082 ft2
Sail Area (100% Foretriangle)
341.6 m2 / 3,677 ft2
Asymmetric Spinnaker
477.10 m2 / 5,135 ft2
Draft (Boards Down)
3.35 m / 10.99 ft
Draft (Boards Up)
2.17 m / 7.12 ft
Draft (Keeled Version)
N/A
Air Draft / Mast Clearance
33.44 m / 109.70 ft
Bridgedeck Clearance
1.12 m / 3.67 ft
DISP (Base Boat – Daggerboard)
31,901 kgs / 70,342 lbs
DISP (Base Boat – Keeled)
N/A
Davit Load
500 kgs / 1,102 lbs per arm
Max Length Tender: 5.05 m / 16.6 ft
Max Weight Tender w/OB: 400 kgs / 882 lbs
Screacher/Reacher
216.38m2 / 2,329ft2
Engine
Yanmar 4JH110 x SD15
Fuel Capacity
2,000 ltrs / 530 gals
Fresh Water Capacity
1,500 ltrs / 396 gals
Black Water Capacity
250 ltrs / 66 gals
Maximum Load Displacement
41,470 kgs / 91,440 lbs
Please note that, based on component availability and other factors, specifications are subject to change without notice.
The weight of each yacht we build varies based on her interior fit-out, materials chosen, hardware and added equipment. All our catamarans are designed for best-in-class weight and sailing performance, without compromising strength or quality.
Underwing clearance will vary based on the final fit out of the yacht together with what is stored on her, the amount of fuel and water she carries, and the number of passengers onboard.
