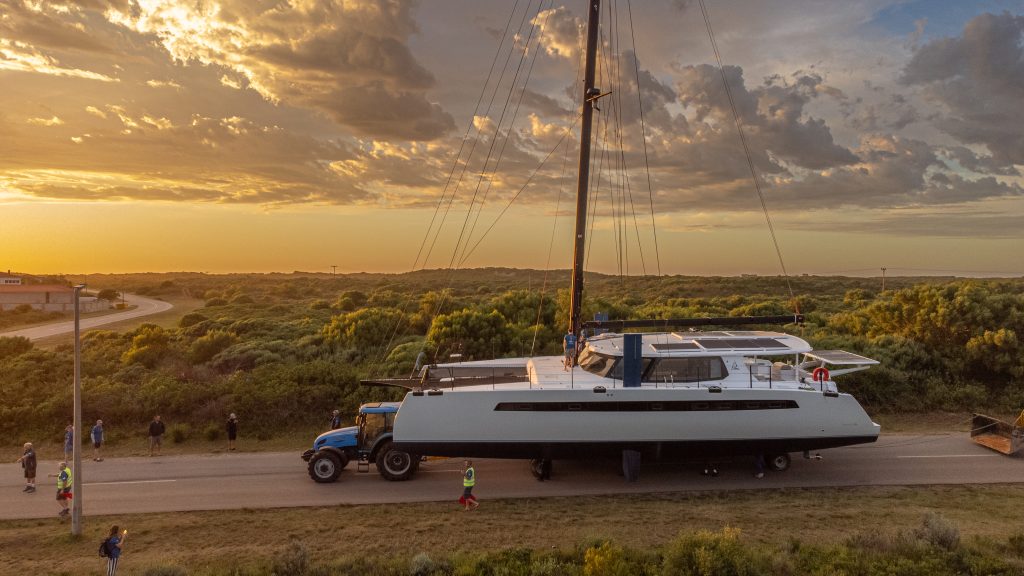

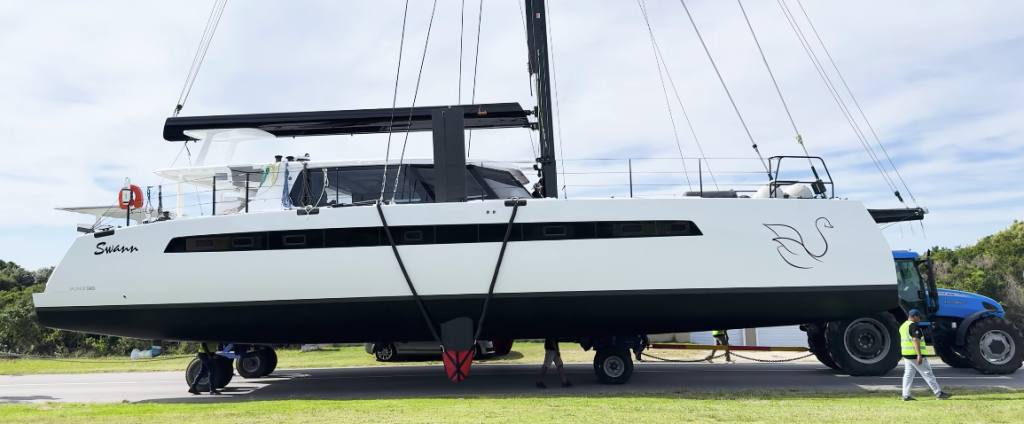

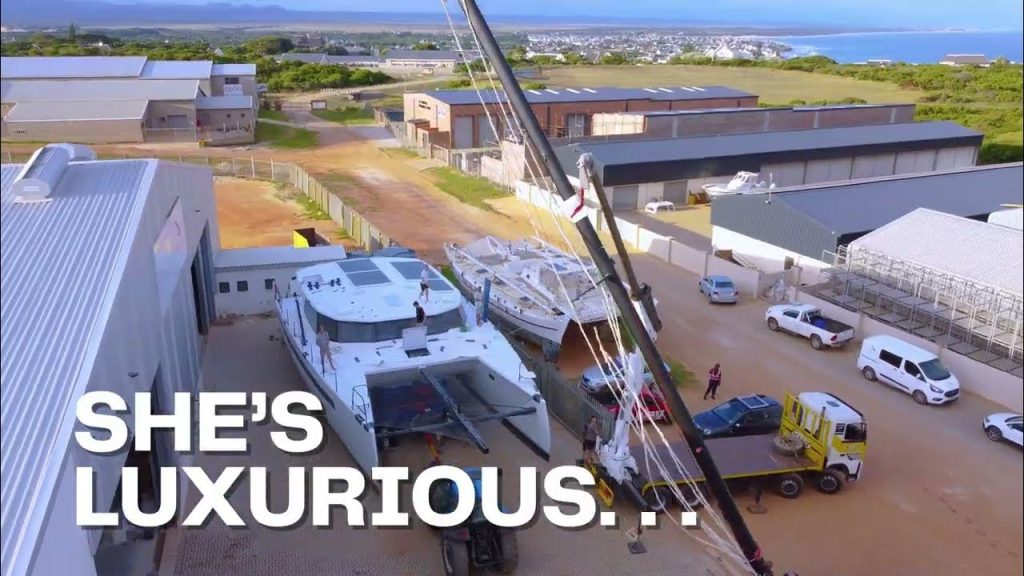

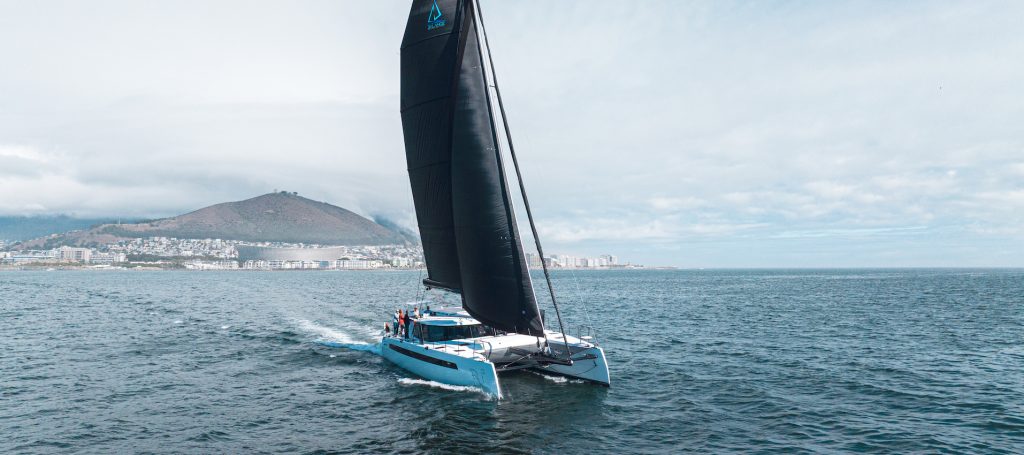

The high-performance voyager was designed for sailors with speed in their hearts but luxury on their minds. View our first 580 Hull, just launched!

Speeds in excess of 20knots

Dual Daggerboards

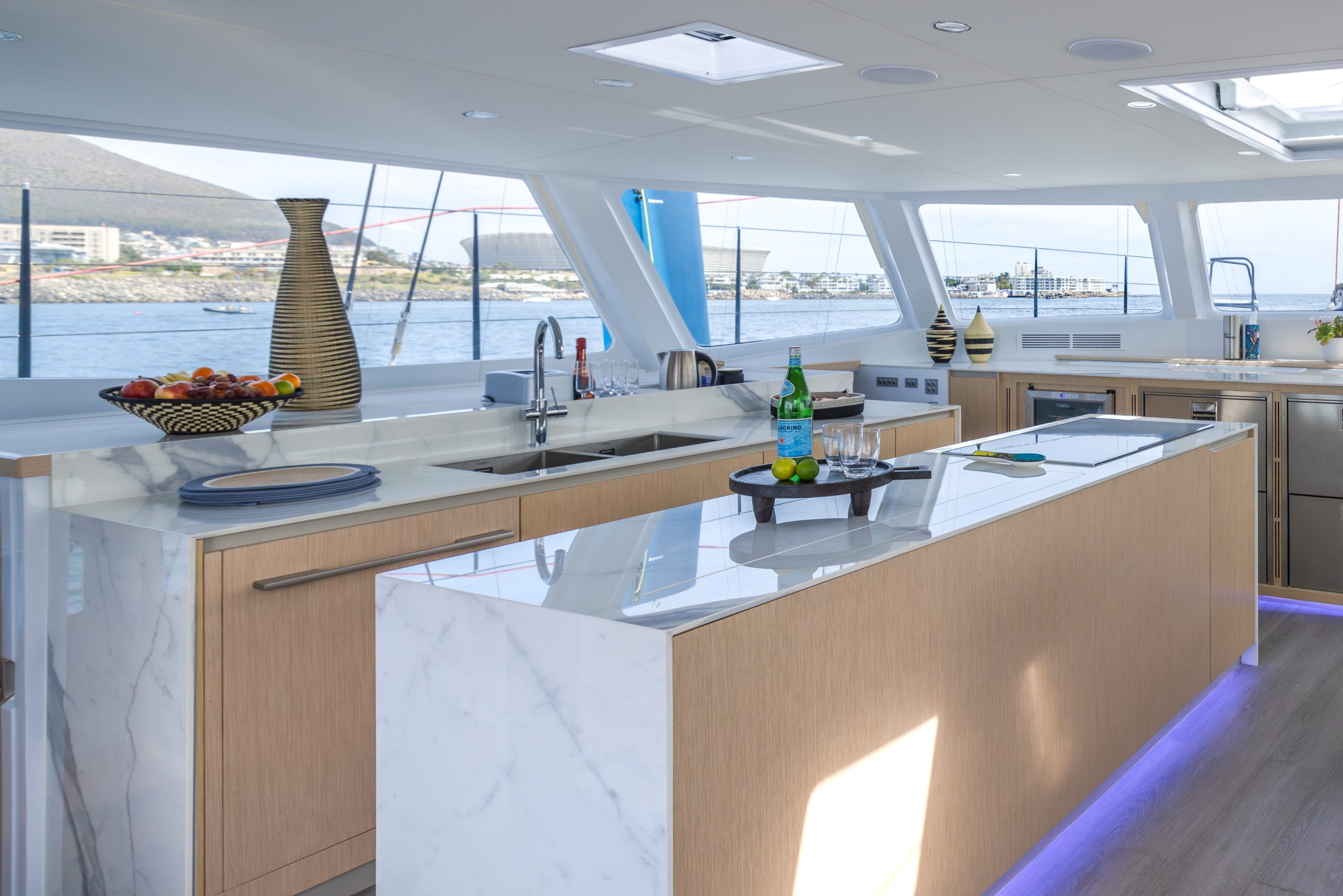

Handmade Cabinetry

Carbon Reinforced

100% epoxy fabrication

Overall Length

17.78m

58.32ft

Beam Overall

8.6m

28.21ft

Sail Area

209.5m2

2,255ft2

Designers

Philip Berman

Draft (Boards Up)

1.65m

5.40ft

Base Boat Displacement (Standard Carbon Cross Version)

16,668kgs

36,753lbs

Anton du Toit

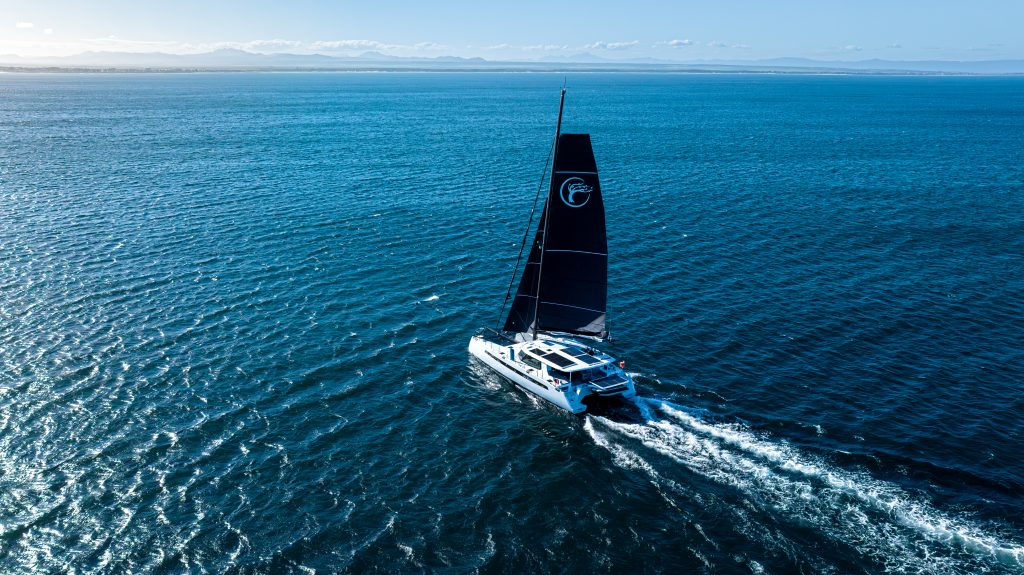

Performance

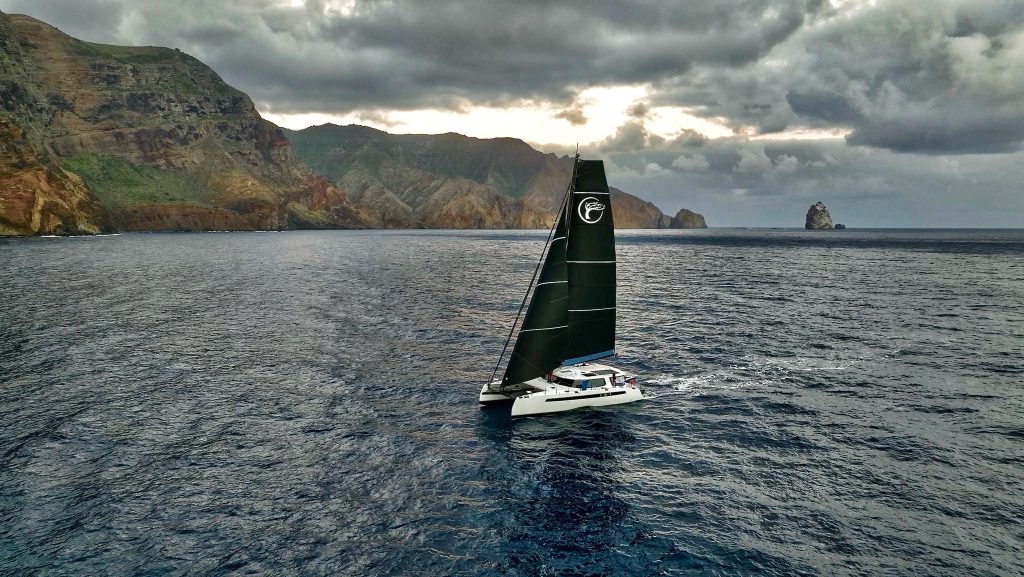

With her long lean hulls and carbon reinforced structure, foam core hulls, 100% epoxy construction, she’s a high performance luxury voyager for those who refuse to compromise. Upwind she points high, with little leeway, in the 8 to 11 knot range with her high aspect daggerboards. Reaching in true winds between 8 and 16 knots she’ll do wind-speed or better with ease. Put her in stiff winds and surf and let the excitement begin as she excellerates into the 20’s.

* Polars are known as Velocity Performance Predictions (VPP’s) and are calculated using advanced computer modeling at base boat weight assuming vessel in flat sea state, trimmed sails and clean bottom. Polars do not guarantee specific performance. Vessel performance in real world conditions vary due to sea state, hull condition, payload, and the skill of the helmsman. To learn more about performance, click below to view our videos on Polars

The Hull

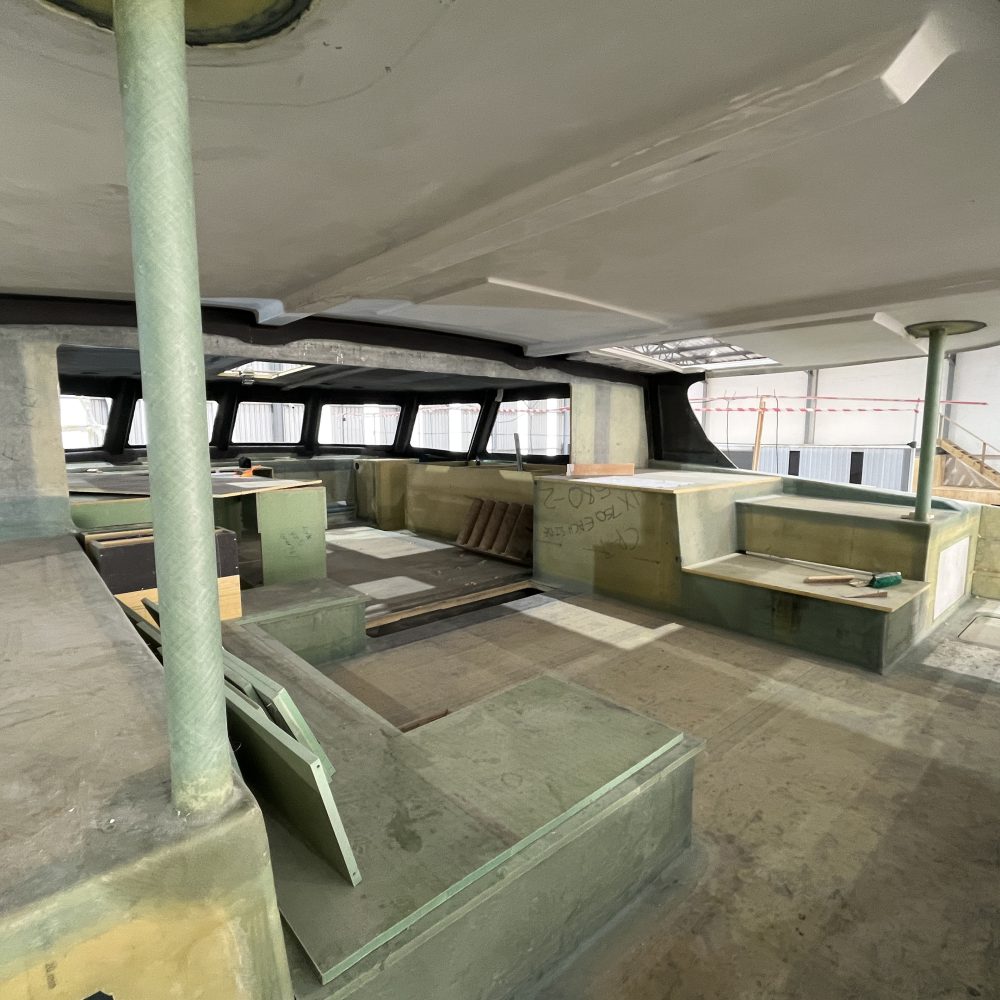

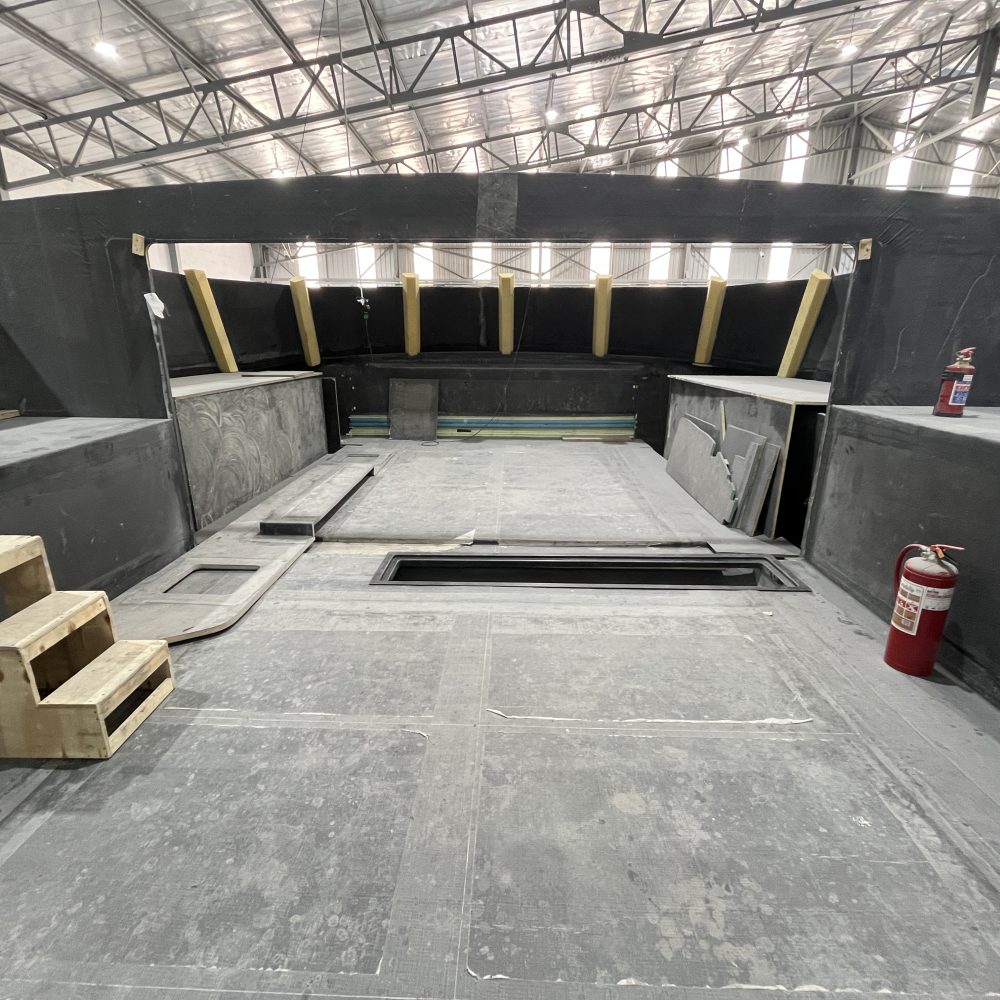

We use E-glass (a Silica -based fiber) with significant carbon-fiber reinforcement in the high-load areas of our hulls and decks. Every Balance 580 is hand-laminated and vacuum-bagged with closed cell foam cores in full epoxy construction.

The 580 XP is crafted with 100% epoxy resin and full carbon construction.

Guided Walk-Through

Design Your Balance or Pick from one of the Curated Designs below

Professionally Curated Design Themes by OLC Philadelphia

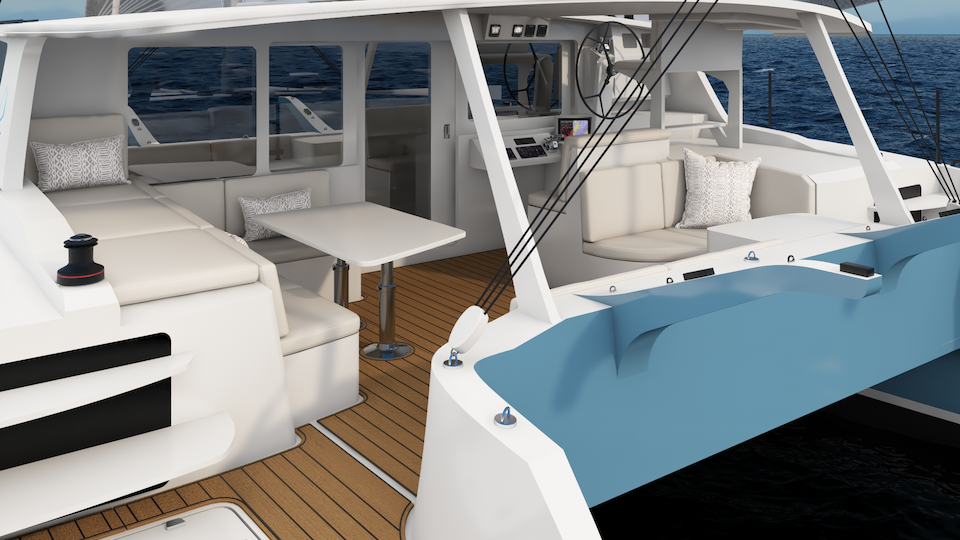

Configurator

Designing your dream catamaran and how to use our visualization tool

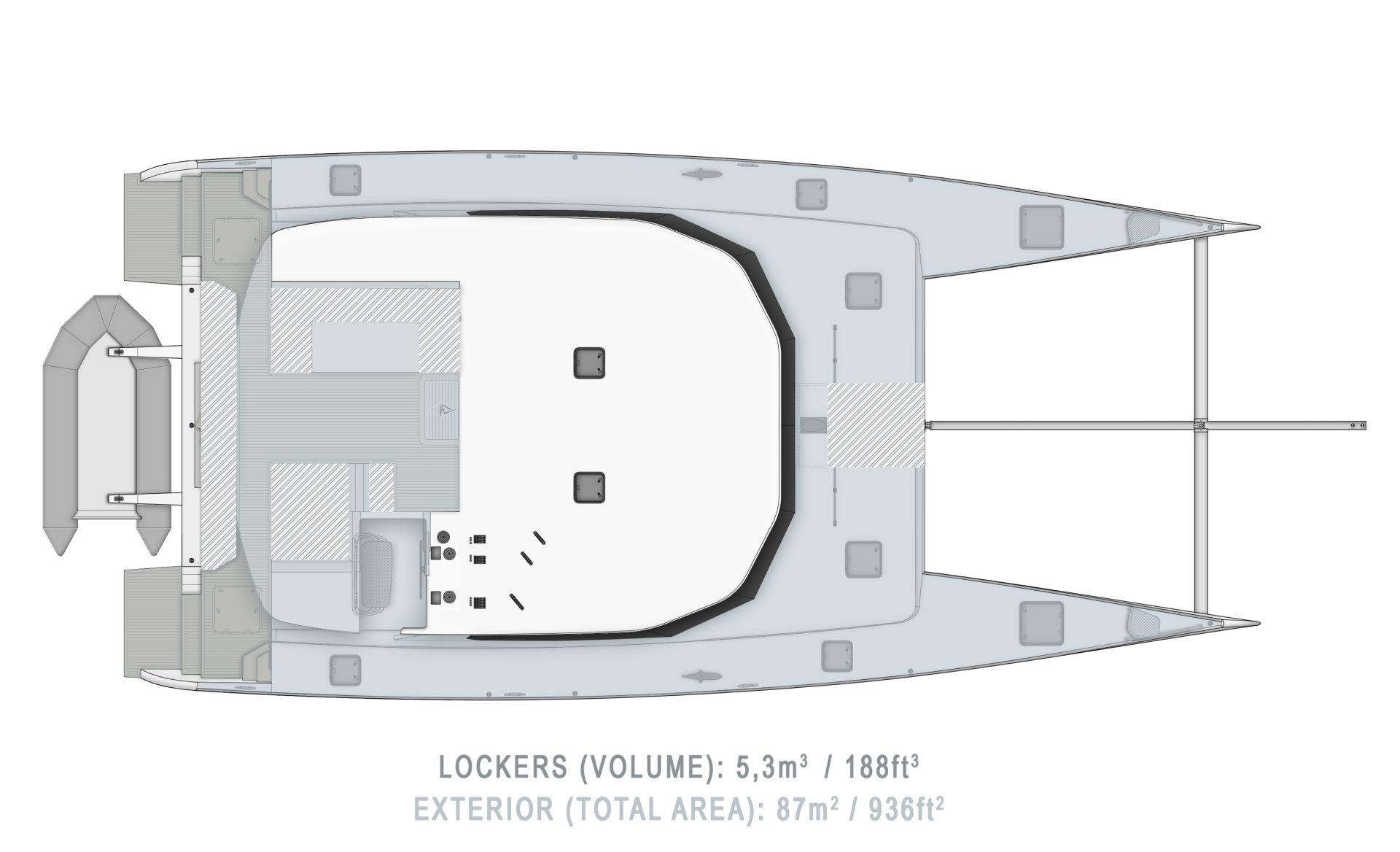

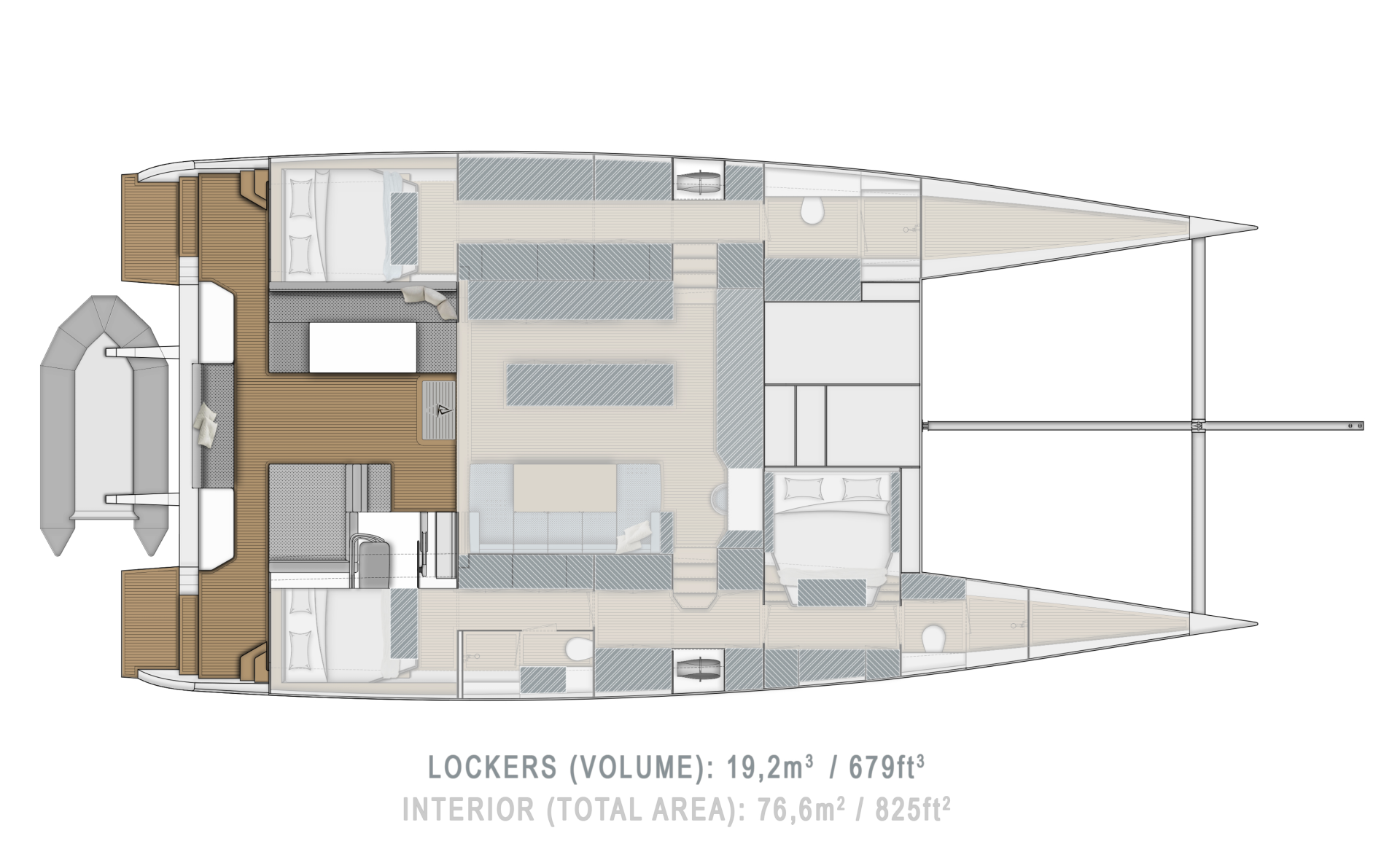

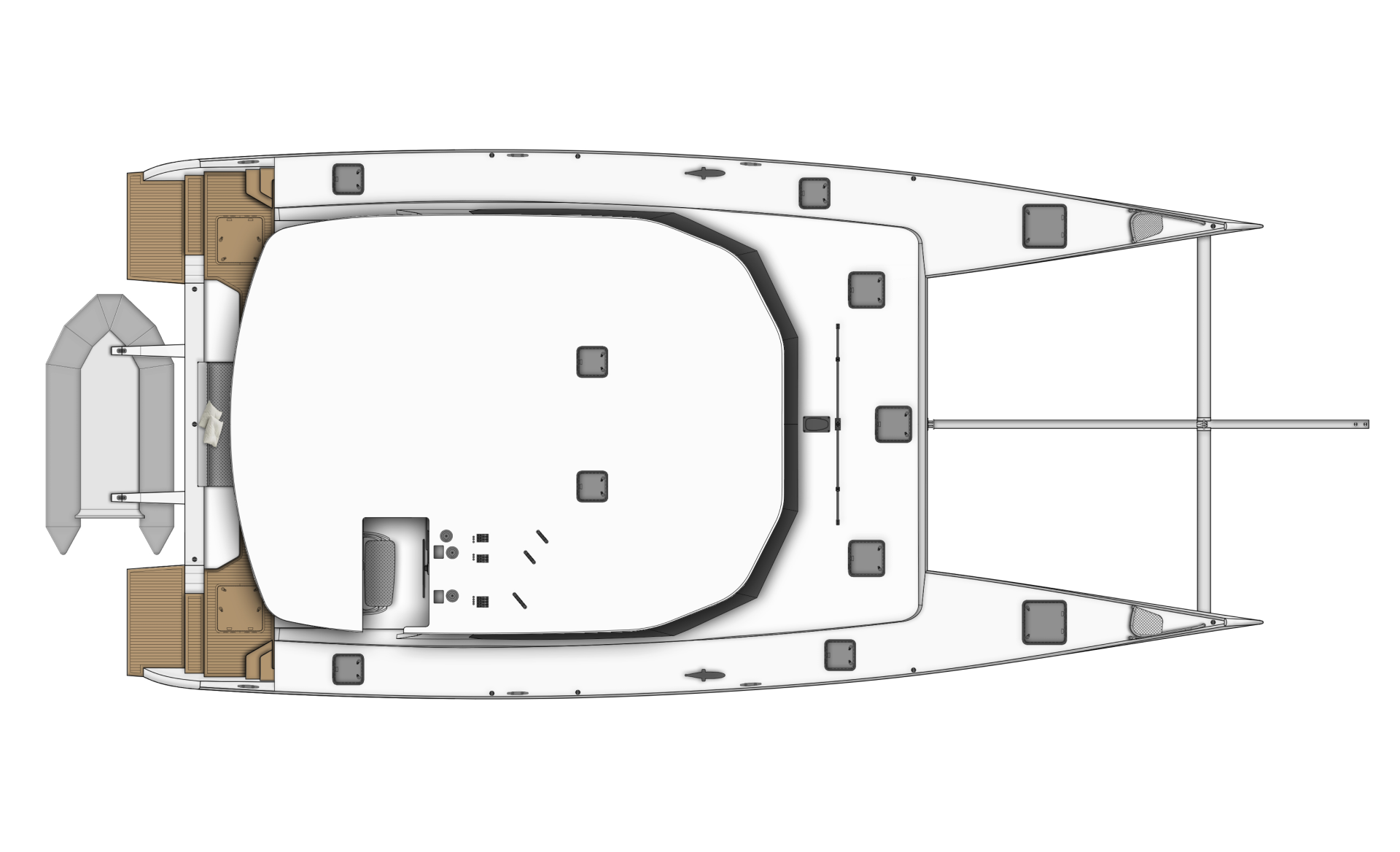

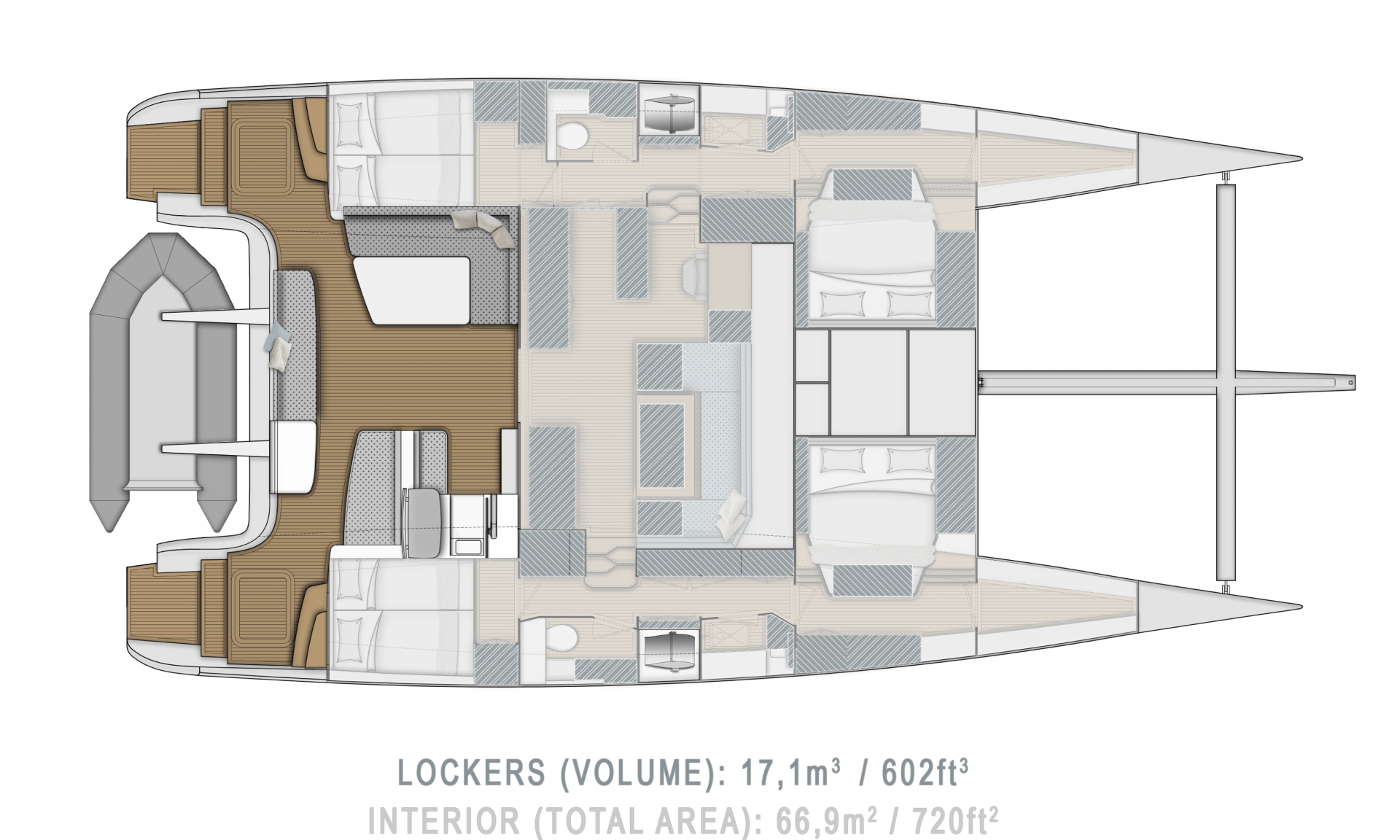

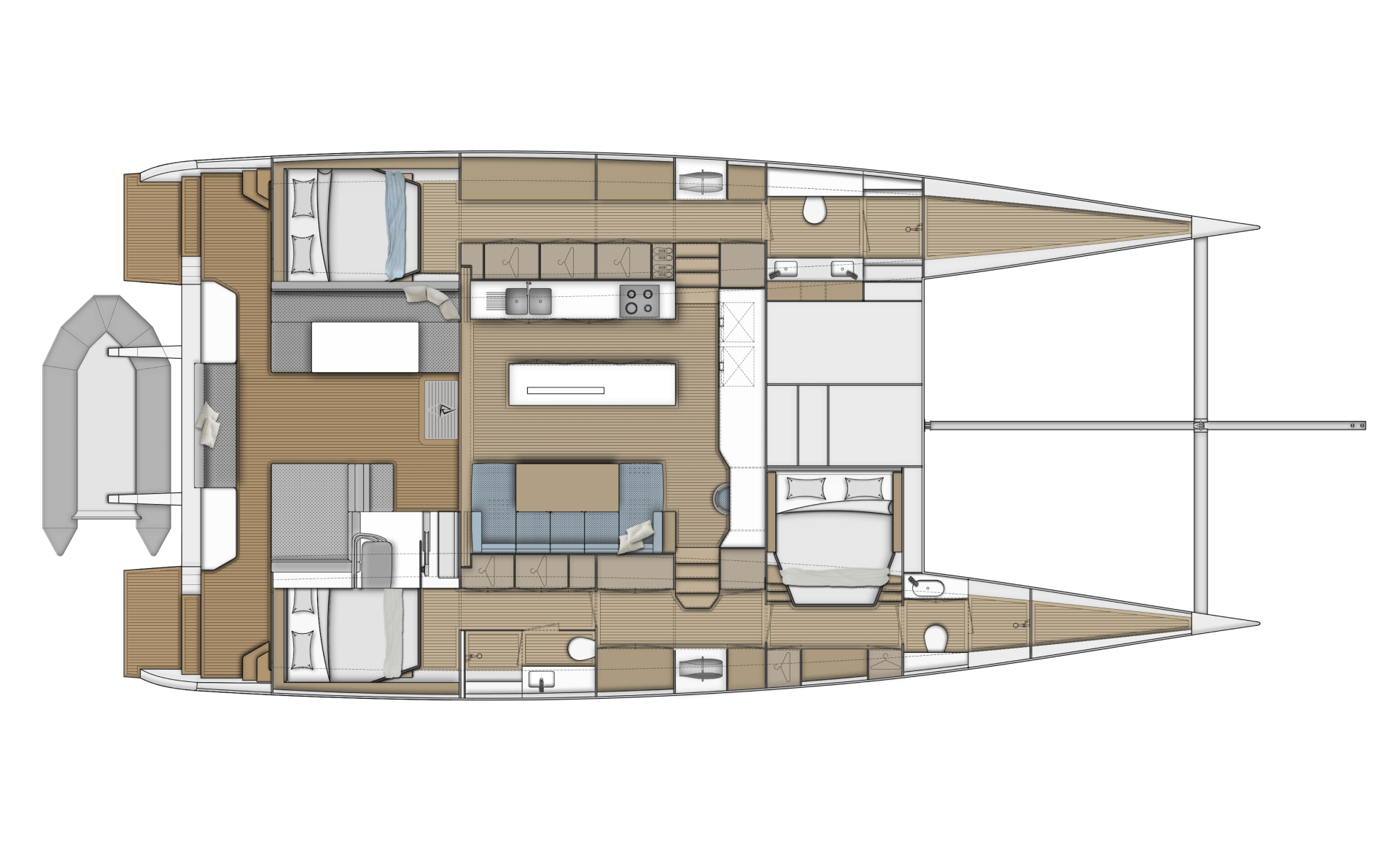

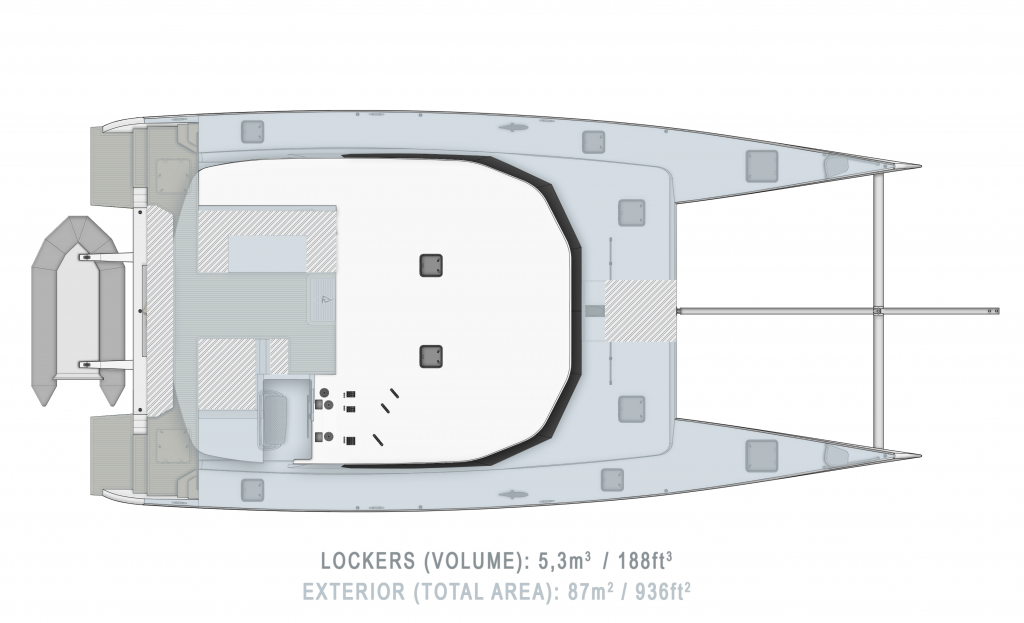

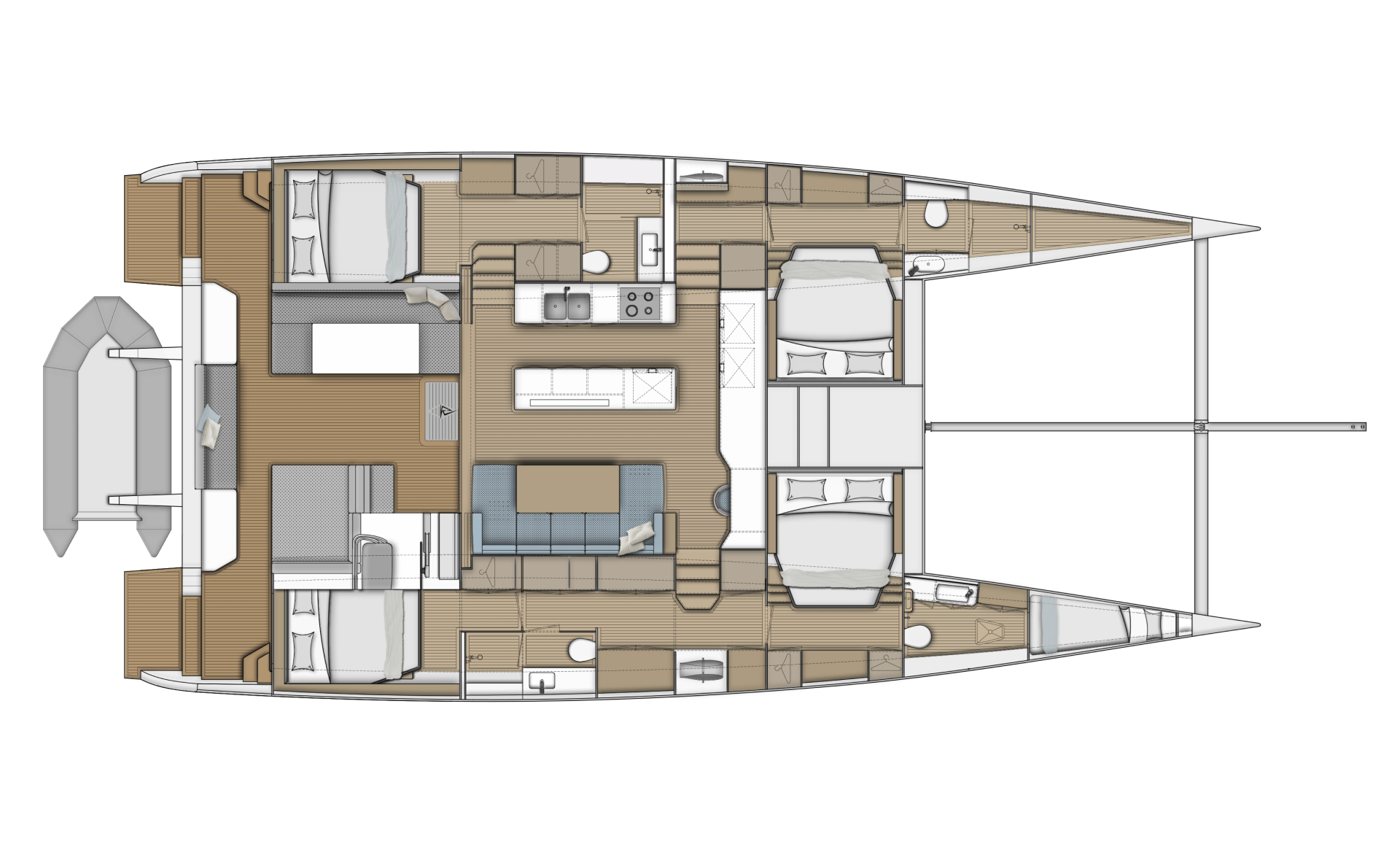

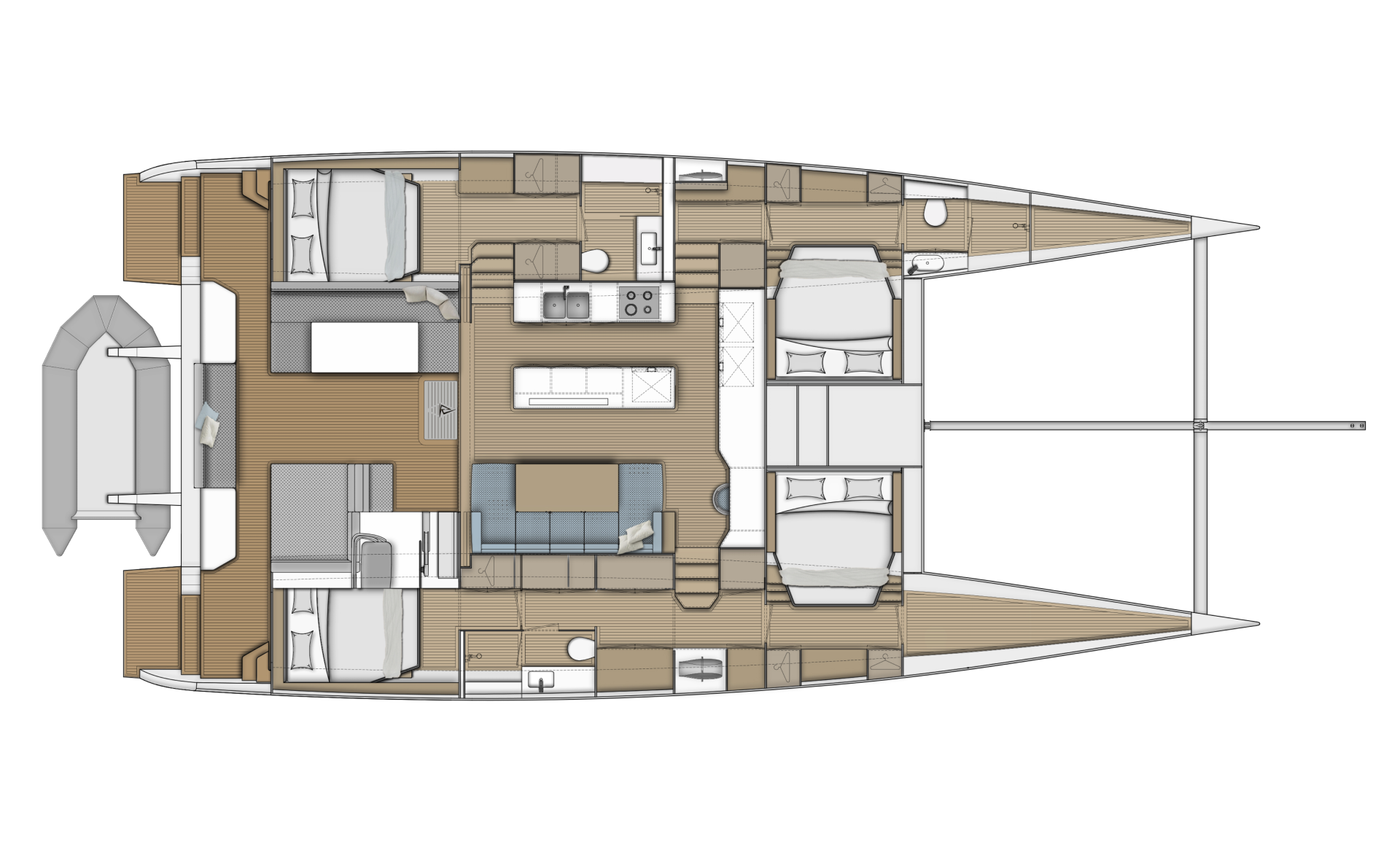

Layouts

What Owners Think

Full Specs

Overall Length

17.78 m / 58.32 ft

Waterline Length

17.78 m / 58.33 ft

Beam Overall

8.6m / 28.21ft

Main Sail

140.9m2 / 1,516ft2

Working Jib

79.5 m2 / 856 ft2

Sail Area (100% Foretriangle)

209.5 m2 / 2,255 ft2

Asymmetric Spinnaker

310.83 m2 / 3,346 ft2

Draft (Boards Down)

3.35 m / 10.99 ft

Draft (Boards Up)

1.65 m / 5.40 ft

Draft (Keeled Version)

N/A

Air Draft / Mast Clearance

27.43 m / 89.99 ft

Bridgedeck Clearance (Base Boat)

1.10m / 3.61 ft

DISP (Base Boat – Daggerboard)

16,668 kgs / 36,753 lbs (Standard Carbon Cross Version)

DISP (Base Boat – Keeled)

N/A

Davit Load

400 kgs / 882 lbs per arm
Max Length Tender 4.27m / 14 ft
Max Weight Tender w/OB 268 kgs / 590 lbs

Screacher/Reacher

125.7 m2 / 1,353 ft2

Engine

Yanmar 4JH57 x SD60

Fuel Capacity

2 x 500 ltrs / 2 x 132 gals

Fresh Water Capacity

2 x 300 ltrs / 2 x 79 gals

Black Water Capacity

2 X 60 ltrs / 2 x 16 gals

Maximum Load Displacement

21,668 kgs / 47,790 lbs

Please note that, based on component availability and other factors, specifications are subject to change without notice.

The weight of each yacht we build varies based on her interior fit-out, materials chosen, hardware and added equipment. All our catamarans are designed for best-in-class weight and sailing performance, without compromising strength or quality.

Underwing clearance will vary based on the final fit out of the yacht together with what is stored on her, the amount of fuel and water she carries, and the number of passengers onboard.
